LMC Mini Facer EVO

The MiniFacer EVO is a lightweight handoperated Flange Facing device to allow the repair of gasket seating area’s according to the ASME B 16.5 specification for surface finish.

The MiniFacer EVO is the big brother of the popular LMC MiniFacer Std. With its enormous clamping range (2 “-22” / 50 – 558 mm) it is very popular for the repairs of the flanges in its working range.

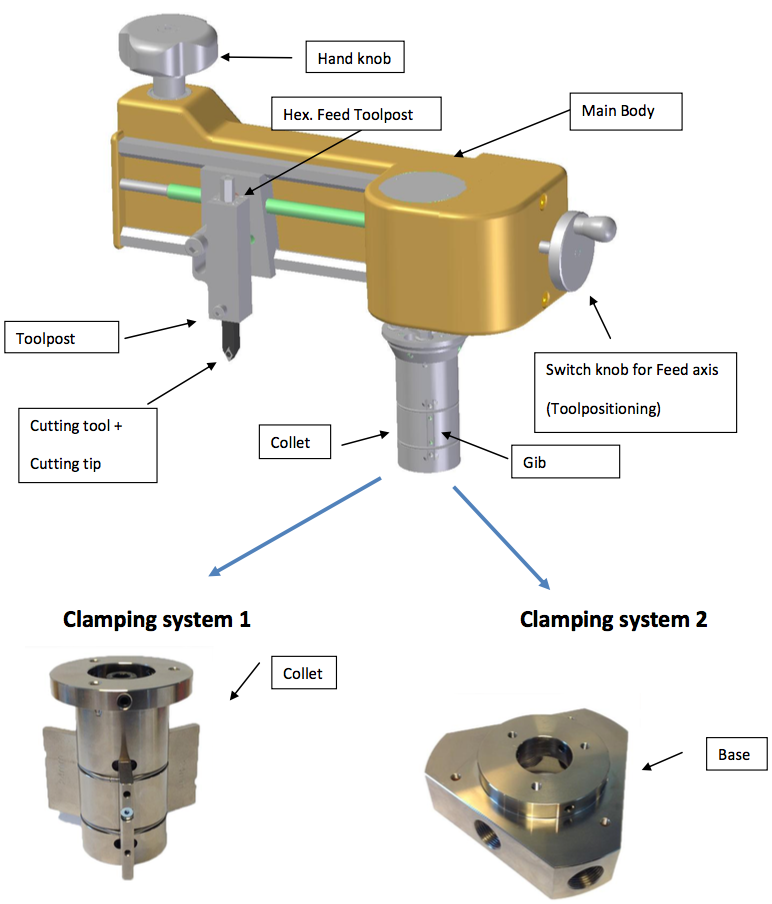

The MiniFacer EVO is equipped with an alignment capability for both cylindrical and flat alignment. The EVO has standard a clamping system with collet for the diameters of 2 “- **” and a base with adjustable clamping feet.

  • Specifications

    Operation data

     CLAMPING  COLLET  BASE
     Min internal clamp cap  ø 48,4 mm  < 2"  ø 152 mm  < 6"
     Max internal clamp cap  ø 240 mm  > 9"  ± ø 457 mm  > 22"
    FACING MIN MAX
    Facing diameter ø 48 mm  < 2 " ø 650 mm > 22"

    Type of flange that can be machined
    -RF / T and G

    Dimentional data
    Weight ready to use : ±9 kg
    Minimum swing diameter  :  ø 292 mm

    Achievable surface finish
    - Stock finish - ASME B16.5
    - Smooth finish

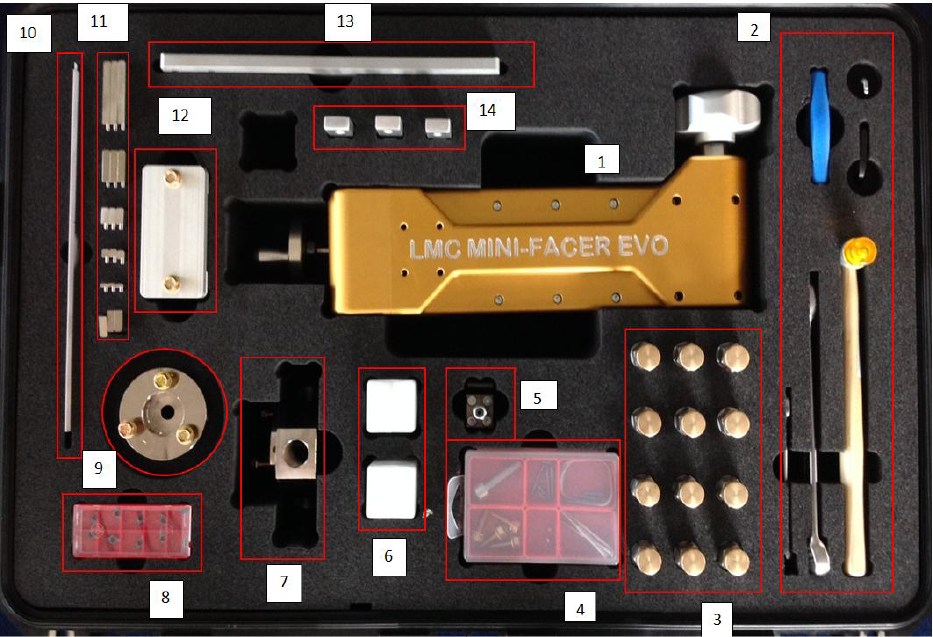

    The Mini Facer comes complete ready to use in a very sturdy carry case . Including :

    Case mini facer EVO

    1) Mini Facer EVO
    2) Hand tools / set
    3) Clamping feets
    4) Box with boltset and ring springs 5) Tool holder
    6) Cutting tool 7) Base
    8) Cutting tips
    9) Collet
    10) Gib selector chart / Feet selector chart 11) Clamping gibs
    12) Counterweight
    13) Setting rail Counterweight
    14) Setting bars
