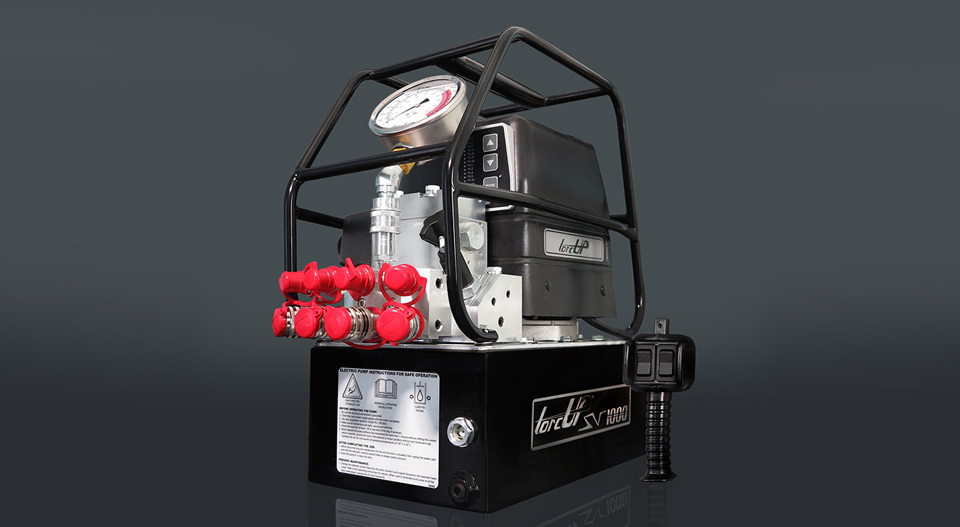

SV SERIES Hydraulic Torque Wrench Pump

The Most Synchronous Hydraulic Torque Wrench Pump In The Industry

The SV series hydraulic torque wrench pump is the perfect synthesis of continuous ratcheting and power to torque. Full range adjustability up to 10,000 PSI / 700 Bar.

“SPEED” Mode For Quick Fastener Rundown

  • Made in the USA
  • Standard Multi-Port
  • Available in 115V and 230V
  • Supplied With 15′ (3 Meter) Hydraulic Hose
  • Genuine TorcUP Design

What makes the SV Series “SUPER”? It is the built-in circuitry that allows the operator to designate the specific tool being used. The pump will then autocycle in “SPEED” mode for quick fastener rundown. Once the nut is seated, activate the torque button to take the job to its final required setting. If speed is your focus, then the SV Series is the answer.

  • Specifications

    Model #Reservoir CapacityValve ModelValve Style / FunctionPendantMotor SpecFlow RateWeight
    SV1000   Torque Auto Retract / Advance/Retract Motor / Solenoid Control 1.5 HP @115VAC Single Phase 700 cu.in./min. @ 1,100 psi
    55 cu.in./min.@10,000 psi (9.4 litres / min. @ 75 bar 0.9 / min. @ 700bar)
    65.75 lbs /
    29.8 kg
    SV1000-230V 1.5 gal /
    5.7 litre
    Torque Auto Retract / Advance/Retract Motor / Solenoid Control 1.5 HP @230VAC Single Phase 701 cu.in./min. @ 1,100 psi
    55 cu.in./min.@10,000 psi (9.4 litres / min. @ 75 bar 0.9 / min. @ 700bar)
    65.75 lbs /
    29.8 kg
  • Dimensions

    Usable Reservoir CapacityABCDE
    1.5 gal. /
    5.7 litre
    8.75 in /
    222 mm
    5.96 in /
    151 mm
    15.13 in /
    384 mm
    18.1 in /
    460 mm
    16.85 in /
    428 mm

    LINE-DRawing-SV1000-BLK

  • Features

    Tool Selection Display

    Tool Selection Display

    Industrial grade LED membrane switch enables quick selection of tool for auto cycle operation.

    Powerful 1.5 HP Motor

    Powerful 1.5 HP Motor

    The permanent magnet motor driving the SV1000 Series runs at 1/3 of the RPM found in other hydraulic pumps. Field-proven gears run cooler and last longer to provide years of trouble free service

    Precise PSI/Bar Gauge

    Precise PSI/Bar Gauge

    Removable, easy-to-read 4" PSI/Bar gauge for ease of tool torque adjustment and monitoring.

    Rugged Remote

    Rugged Remote

    Each pump includes the 15' low-voltage ergonomic remote operation pendant. The durable design is suited for the harshest environments.

    Built-In Protective Shroud and Roll Cage

    Built-In Protective Shroud and Roll Cage

    The motor and electronics are enclosed in a safety shroud to protect the pump from the elements and other environmental contaminants. For added safety, the pump is also fitted with a sturdy roll cage for lifting and protection.

    Industrial Reservoir

    Industrial Reservoir

    Powder coated aluminum reservoir is lightweight yet durable for operating in the harshest environments. The pump comes standard with a 1.5 gallon reservoir.

    Easy View Sight Glass

    Easy View Sight Glass

    Sight glass enables operator to monitor reservoir oil levels.

    Pressure Adjustment Knob

    Pressure Adjustment Knob

    The easily accessible knob allows the user to adjust the pressure output of the pump, increasing or decreasing torque when necessary.

    Twinline High Pressure Hydraulic Hoses

    Twinline High Pressure Hydraulic Hoses

    Each pump comes standard with one set of 15' twinline hydraulic hoses. The hoses are 4:1 safety rated and made of durable steel mesh in a protective rubberized coating.

    No Drip Quick Connect Couplers

    No Drip Quick Connect Couplers

    These 3:1 rated safety couplers are designed for simple engagement. The coupler collar ensures safe operation. This model is configured for the quadra-torc option - running up to four tools simultaneously.
  • Accessories

    Tool Selection Display

    Tool Selection Display

    Industrial grade LED membrane switch enables quick selection of tool for auto cycle operation.

    Powerful 1.5 HP Motor

    Powerful 1.5 HP Motor

    The permanent magnet motor driving the SV1000 Series runs at 1/3 of the RPM found in other hydraulic pumps. Field-proven gears run cooler and last longer to provide years of trouble free service

    Precise PSI/Bar Gauge

    Precise PSI/Bar Gauge

    Removable, easy-to-read 4" PSI/Bar gauge for ease of tool torque adjustment and monitoring.

    Rugged Remote

    Rugged Remote

    Each pump includes the 15' low-voltage ergonomic remote operation pendant. The durable design is suited for the harshest environments.

    Built-In Protective Shroud and Roll Cage

    Built-In Protective Shroud and Roll Cage

    The motor and electronics are enclosed in a safety shroud to protect the pump from the elements and other environmental contaminants. For added safety, the pump is also fitted with a sturdy roll cage for lifting and protection.

    Industrial Reservoir

    Industrial Reservoir

    Powder coated aluminum reservoir is lightweight yet durable for operating in the harshest environments. The pump comes standard with a 1.5 gallon reservoir.

    Easy View Sight Glass

    Easy View Sight Glass

    Sight glass enables operator to monitor reservoir oil levels.

    Pressure Adjustment Knob

    Pressure Adjustment Knob

    The easily accessible knob allows the user to adjust the pressure output of the pump, increasing or decreasing torque when necessary.

    Twinline High Pressure Hydraulic Hoses

    Twinline High Pressure Hydraulic Hoses

    Each pump comes standard with one set of 15' twinline hydraulic hoses. The hoses are 4:1 safety rated and made of durable steel mesh in a protective rubberized coating.

    No Drip Quick Connect Couplers

    No Drip Quick Connect Couplers

    These 3:1 rated safety couplers are designed for simple engagement. The coupler collar ensures safe operation. This model is configured for the quadra-torc option - running up to four tools simultaneously.
