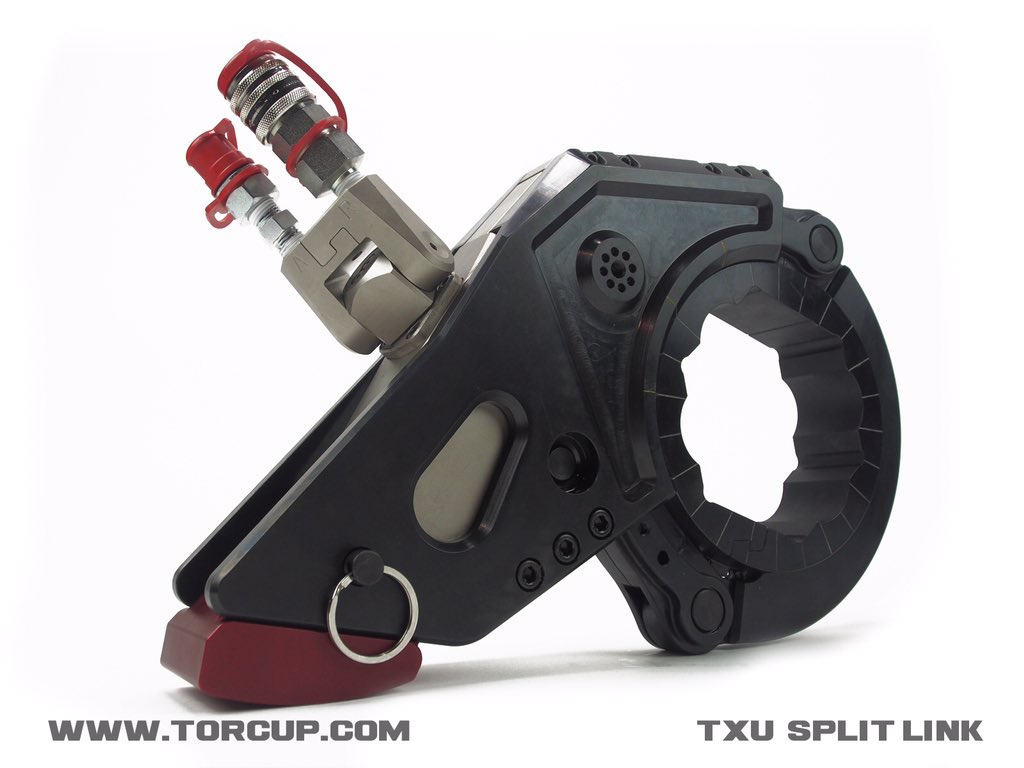

TXU SERIES Uniswivel Low Profile Hydraulic Torque Wrench

The Flattest And Most Application Rotatable Hydraulic Bolting Tool In The Industry

The TXU series covers all the bases when it comes to giving you tight clearance application fitment. Not only does this tool address nut circumference issues, it also allows for shorter tool length fitment between application obstructions. With the hose swivel assembly positioned above the tool housing torque can be applied on every application with an accuracy of +/-3%.

Even More Application Adjustable!

  • Made in the USA
  • Three Models From 192 Ft/Lbs to 8,630 Ft/Lbs 260nm. to 11699nm.
  • Every Unit Calibrated In ISO17025 Laboratory
  • Manufactured With AQ Certified Alloys
  • Genuine TorcUP Design

We started with the greatest low clearance hydraulic wrench, the TX series, and made it even more application adjustable. Every limited clearance bolting application poses a challenge, but now with the TXU further problems are solved. With the hose swivel assembly being positioned above the tool the hydraulic cylinder and link length are shortened, thus getting the tool into the “IN BETWEEN” challenging applications.

  • Features

    Uni-Swivel Design

    Uni-Swivel Design

    The 360 degree by 180 degree uni-swivel allows for shorter tool length, accommodating applications with obstructions.
    Patented “Peanut-Shaped” Piston

    Patented “Peanut-Shaped” Piston

    This feature allows the cylinder and ratchet link to be the same width. Friction reducing sliders prevent wear on the piston.
    Hex Link Cassettes

    Hex Link Cassettes

    Each link is fitted with steel alignment pins connecting the lower reaction area for added strength.
    No Drip Quick Connect Couplers

    No Drip Quick Connect Couplers

    These 3:1 rated safety couplers are designed for simple engagement. The coupler collar ensures safe operation.
    Cylinder and Link Material

    Cylinder and Link Material

    Both cylinder and link are manufactured from 4340 Aircraft Quality high strength steel alloy.
    Nose Radius

    Nose Radius

    Tight nose radius allows this tool to fit in applications where clearance constraints make other tools too bulky.
    In-Line Reaction Pad

    In-Line Reaction Pad

    This design ensures torsion-free reaction every time.
    Link Pin

    Link Pin

    One pin for link to cylinder engagement - no tool required for swapping ratchet links.
  • Technical Data

    Model NumberTXU-2TXU-4TXU-8
    Min Torque (ft/lbs) 192 395 830
    Max Torque (ft/lbs) 1928 3950 8630
    Output Accuracy +/- 3% +/- 3% +/- 3%
    Repeatability 100% 100% 100%
    Duty Cycle 100% 100% 100%
    Cylinder Weight 4.00lbs / 1.8kg 6.90lbs / 3.1kg 12.50lbs / 5.7kg
    Link Weight From (lbs) 2.40 5.40 11.90
    Link Weight To (lbs) 3.50 7.60 14.50
    Link Weight From (kg) 1.00 2.40 5.50
    Link Weight To (kg) 1.50 3.40 6.50
    Hex range from 3/4" / 19mm 1" / 25mm 1 7/8" / 49mm
    Hex range to 2 9/16" / 65mm 3 1/8" / 80mm 4 5/8" / 120mm



    Model NumberTXU-2TXU-4TXU-8
    Length 1 6.45" / 163.8mm 7.87" / 199.9mm 10.18" / 258.6mm
    Length 2 5.99" / 152.1mm 6.55" / 166.4mm 7.34" / 186.4mm
    Width 1 1.25" / 31.8mm 1.63" / 41.4mm 2.05" / 52.1mm
    Width 2 2.19" / 55.6mm 2.26" / 57.4mm 2.26" / 57.4mm
    Radius 0.36" / 9.1mm 0.46" / 11.7mm 0.54" / 13.7mm
    Height 1 3.84" / 97.5mm 4.93" / 125.2mm 6.18" / 157.0mm
    Height 2 1.11" / 28.2mm 1.30" / 33.0mm 1.30" / 33.0mm
  • Accessories

    TXU Inline Reaction Arm

    TXU Inline Reaction Arm

    This arm can be attached to the drive cylinder and ratchet link to provide a reaction area further from the tool.
    TXU Tool Handle

    TXU Tool Handle

    This ergonomically designed handle for TorcUP hydraulic tooling can be attached to the tool for safe operation and positioning of the tool, while keeping hands clear of any reaction points.
    TXU Low Point Reaction Paddle

    TXU Low Point Reaction Paddle

    The paddle allows for a reaction point below the tool or against the edge of the flange.
    TXU Link Pin With Landyard

    TXU Link Pin With Landyard

    The lanyard design for this accessory allows the link pin to be tethered to the tool, preventing lost or dropped pins when switching out ratchet links.

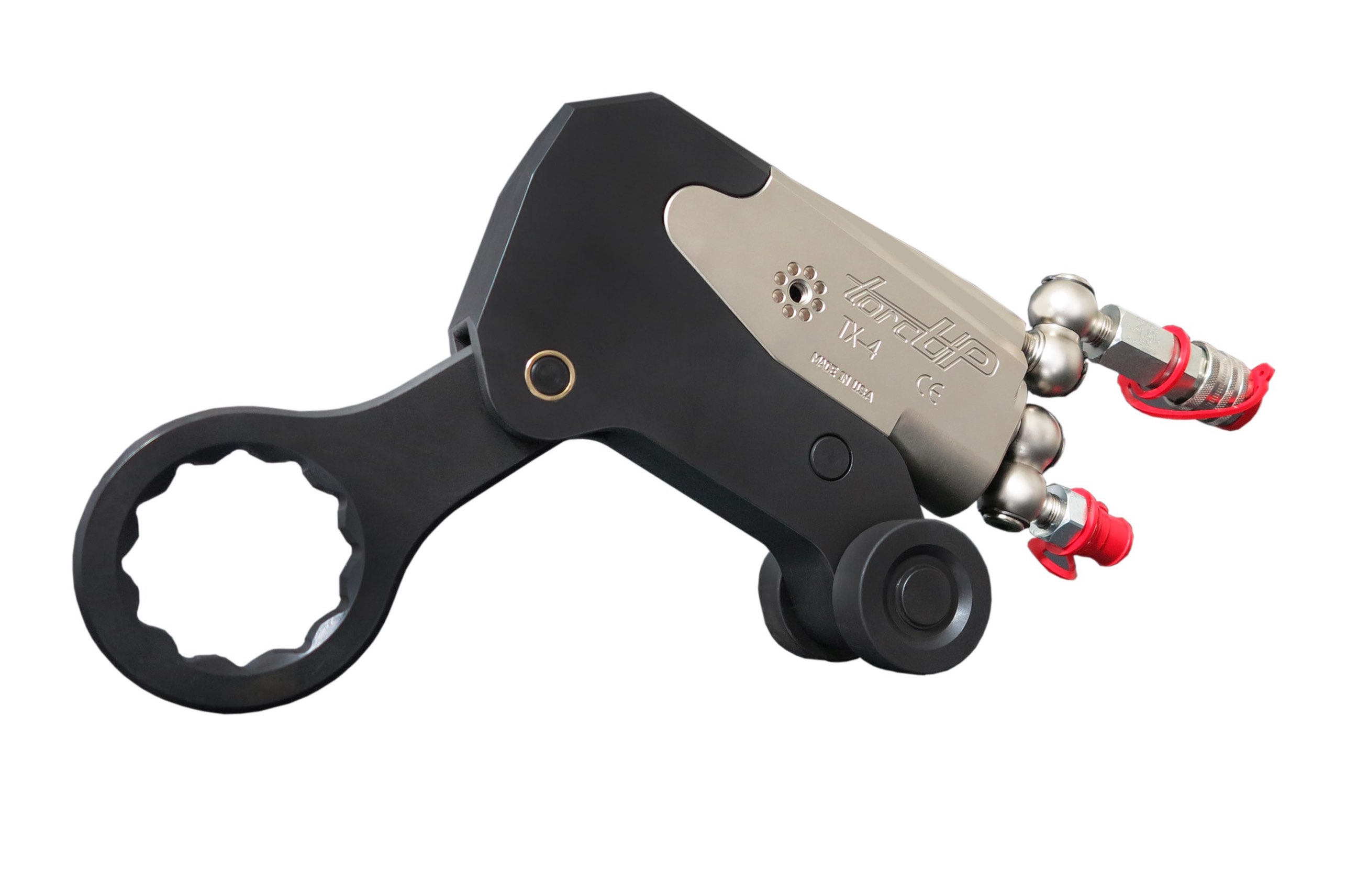

    TXU Spanner Wrench

    TXU Spanner Wrench

    The line of spanner wrenches for the TX Series, available in closed end standard sizes and open or closed custom sizes, is a unique solution for applications where traditional links will not fit.
    TXU Hex Reducer

    TXU Hex Reducer

    Custom hex reducers are available for all TX models to reduce the hex openings on the links. These bushings can reduce 3/16” (5mm) or more, depending on need.
    TXU Hex to Square Drive Adaptor

    TXU Hex to Square Drive Adaptor

    Custom hex to square drive adaptors are available to insert a square drive (or hex drive) into a link for use with industrial impact sockets.
  • Documents / Downloads

Lees meer: TorcUP TXU Wrench

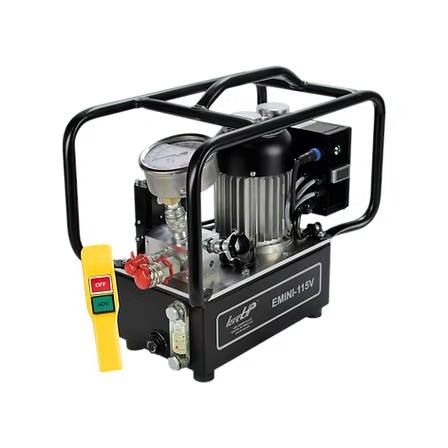

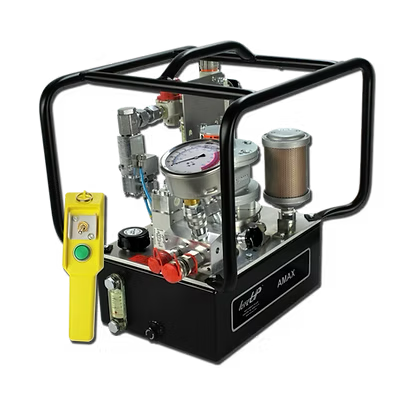

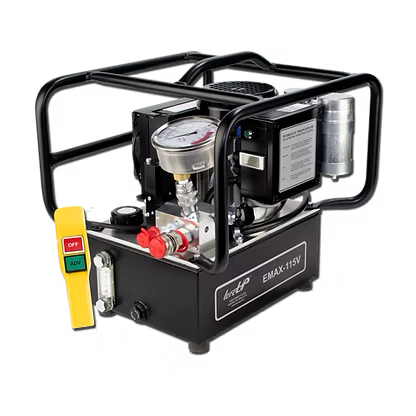

EP SERIES Hydraulic Torque Wrench Pump

The Most Heavy Duty Hydraulic Torque Wrench Pump In The Industry

The EP series hydraulic torque wrench pumps were designed with on-site continuous duty cycling reliability in mind. Full range adjustability up to 10,000 PSI / 700 Bar.

CONTINUOUS DUTY CYCLING RELIABILITY

  • Made in the USA
  • Two Size Models Available
  • Available in 115V and 230V
  • Supplied With 15′ (3 Meter) Hydraulic Hose
  • Genuine TorcUP Design

The EP series hydraulic torque wrench pump is manufactured to withstand harsh environments and heavy duty applications. Adjust the pressure to the desired PSI/Bar to achieve proper torque output each and every time. Whether running one tool or four, the EP series pumps are the power that guarantees the job will get done.

  • Specifications

    EP500

    Model #Reservoir CapacityValve ModelValve Style / FunctionPendantMotor SpecFlow RateWeight
    EP500 1 Gal. /
    3.8 litre
    Torque Auto Retract / Advance/Retract Motor / Solenoid Control 1.125 HP @230VAC Single Phase 525 cu.in./min.
    @ 1,100 psi
    46 cu.in./min.
    @10,000 psi
    59.4 lbs. /
    26.9 kg
    EP500-230V 1 Gal. /
    3.8 litre
    Torque Auto Retract / Advance/Retract Motor / Solenoid Control 1.125 HP @115VAC Single Phase 8.61 litres / min.
    @ 75 bar
    0.78 litres / min.
    @ 700bar
    59.4 lbs. /
    26.9 Kg

    EP1000

    Model #Reservoir CapacityValve ModelValve Style / FunctionPendantMotor SpecFlow RateWeight
    EP1000 1.5 Gal. /
    5.7 litre
    Torque Auto Retract / Advance/Retract Motor / Solenoid Control 1.5 HP @115VAC Single Phase 700 cu. in./min.
    @ 0 psi
    575 cu.in./min.
    @ 1,100 psi 55 cu.in./min.
    @10,000 psi
    74.2 lbs. /
    33.7 kg
    EP1000-230V 1.5 Gal. /
    5.7 litre
    Torque Auto Retract / Advance/Retract Motor / Solenoid Control 1.5 HP @230VAC Single Phase 700 cu. in./min.
    @ 0 psi
    575 cu.in./min.
    @ 1,100 psi 55 cu.in./min.
    @10,000 psi
    74.2 lbs. /
    33.7 kg
    EP1000-Q 2.5 Gal. /
    9.5 litre
    Torque Auto Retract / Advance/Retract Motor / Solenoid Control 1.5 HP @115VAC Single Phase 700 cu. in./min.
    @ 0 psi
    575 cu.in./min.
    @ 1,100 psi 55 cu.in./min.
    @10,000 psi
    81.2 lbs. /
    36.8 kg
    EP1000-Q-230V 2.5 Gal. /
    9.5 litre
    Torque Auto Retract / Advance/Retract Motor / Solenoid Control 1.5 HP @230VAC Single Phase 700 cu. in./min.
    @ 0 psi
    575 cu.in./min.
    @ 1,100 psi 55 cu.in./min.
    @10,000 psi
    81.2 lbs. /
    36.8 kg
  • Dimensions

    EP500

    Usable Reservoir CapacityABCD
    1 Gal. /
    3.8 litre
    13.1 in. /
    333 mm
    8.19 in. /
    208 mm
    19 in. /
    483 mm
    5.73 in. /
    146 mm

    LINE-DRAWING-EP500-BLK


    EP1000

    Usable Reservoir CapacityABCD
    1.5 Gal. / 5.7 litre 15.13 in. /
    384 mm
    8.75 in. /
    222 mm
    19 in. /
    483 mm
    5.94 in. /
    151 mm
    2.5 Gal. / 9.5 litre 17 in. /
    432 mm
    9.75 in. /
    248 mm
    19 in. /
    483 mm
    5.94 in. /
    151mm

     LINE-Drawing-EP1000-BLK

  • Features

    Sensors and communication
    29 mm (1.1 in.) CCD with line laser; electronic inclinometer ±0,5°; Bluetooth 4.0 LE or USB cables (included)
    System Measuring distance
    0,07 to 4 m (0.23 to 13.1 ft.)
    Measuring errors / displayed resolution
    <0,5% ±5 µm / 10 um (0.4 mils)
    Display type
    5.6" colour resistive touchscreen LCD
    Software update
    via USB stick
    Shaft diameters
    20 to 150 mm (0.8 to 5.9 in.) diameter Up to 300 mm (11.8 in.) with optional extension chains
    Max. recommended coupling height
    195 mm (7.7 in.) with included extension rods
    Mounting system
    2 × V-brackets; 2 × chains 400 mm (15.8 in.); 2 × threaded rods 150 mm (5.9 in.) per V-bracket; 4 × extension rods 90 mm (3.5 in.)
    Alignment measurement
    3 position measurement 9–12–3 3 position automatic measurement 9–12–3 3 position free measurement (with min. 90° rotation)
    Alignment correction
    Live values for vertical and horizontal machine position correction; Laser soft foot tool
    Alignment report
    Automatic pdf report exportable via USB stick
    Display unit battery
    up to 8 hours continuous use at 100% backlight (5 000 mAh rechargeable LiPo battery)
    Measuring unit battery
    up to 12 hours continuous use (2 000 mAh rechargeable LiPo battery)
    Carrying case dimensions
    530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.)
    Total weight (incl. case)
    4,75 kg (10.5 lb)
    Operating temperature
    0 to 45 °C (32 to 113 °F)
    IP rating
    IP54
    Calibration certificate
    Supplied with 2 years validity
  • Accessories

    EP500 Accessories

    Storage/Shipping Cases

    Storage/Shipping Cases

    Cases ranging from aluminum to plastic for pump storage and delivery are available to fit the pumps and tools.
    Roll Cage

    Roll Cage

    A protective aluminum roll cage is available for all pumps. This cage is standard on all SV pumps.
    Foot Switch for EP and SV Pumps

    Foot Switch for EP and SV Pumps

    The foot switch allows the pumps to be operated hands-free. It is only available for the EP and SV pumps.
    Twinline High Pressure Hydraulic Hoses

    Twinline High Pressure Hydraulic Hoses

    Each pump comes standard with one set of 15' twinline hydraulic hoses. The hoses are 4:1 safety rated and made of durable steel mesh in a protective rubberized coating. Longer lengths of hoses available to accommodate various needs.

    EP1000 Accessories

    Storage/Shipping Cases

    Storage/Shipping Cases

    Cases ranging from aluminum to plastic for pump storage and delivery are available to fit the pumps and tools.
    Roll Cage

    Roll Cage

    A protective aluminum roll cage is available for all pumps. This cage is standard on all SV pumps.
    Heat Exchanger

    Heat Exchanger

    The heat exchanger cools the oil in the reservoir, extending runtime. It is available only for the EP1000/EP1000-Q models in both 115V and 230V.
    Foot Switch for EP and SV Pumps

    Foot Switch for EP and SV Pumps

    The foot switch allows the pumps to be operated hands-free. It is only available for the EP and SV pumps.
    5 Gallon Reservoir

    5 Gallon Reservoir

    The larger reservoir allows for more oil to run through the system, increasing run time and minimizing the temperature of the oil. It is available only for the EP1000/EP1000-Q models in both 115V and 230V.
    Twinline High Pressure Hydraulic Hoses

    Twinline High Pressure Hydraulic Hoses

    Each pump comes standard with one set of 15' twinline hydraulic hoses. The hoses are 4:1 safety rated and made of durable steel mesh in a protective rubberized coating. Longer lengths of hoses available to accommodate various needs.

  • Documents / Downloads

Lees meer: TorcUP EP Pumps

RP-E6 SERIES Pneumatic Torque Wrench

The Most Robust Wheel Bolting Pneumatic Torque Wrench In The Industryy

The RP-E6 series wrench is a torque instrument designed for use on the most accuracy critical applications in the world, Wheel Bolting! With the use of standard industrial sockets every bolting application is met with repeatable torque to an accuracy of +/-5%.

Lengthen the reach of the torque tool barrel

  • Made In USA
  • One Model Capable of 1,030 Ft/Lbs 1396nm.
  • Every Unit Calibrated In ISO17025 Laboratory
  • Manufactured With AQ Certified Alloys
  • Genuine TorcUP Design

The RP-E6 in designed to lengthen the reach of the torque tool barrel into depth and width critical locations – the typical application being that of rims installed on large trucks and mining (OTR) equipment. However, if your bolting application requires up to 1,030 ft/lbs of torque and the fastener is nestled in a deep and tough to reach location, we meet the challenge also with the RP-E6. So whether you are bolting rims to your large mining machine or assembling a large pump with fasteners in deep pockets, your application can be handled by the RP-E6 with ease.

  • Specifications

    Model #RP-1000E6
    Square Drive 3/4"
    Min. Torque (Ft/Lbs) 148
    Max. Torque (Ft/Lbs) 1030
    Min. Torque (Nm) 201
    Max. Torque (Nm) 1396
    Output Accuracy @ Set Torque +/- 5%
    Repeatability 100%
    Duty Cycle 100%
    Weight w/o Arm 14lbs/6.4kg
    RPM @ 10 psi 7
    Tool Max psi 70
    RPM @ Max psi 15
    Requirements Air pressure 10-70 psi / Flow 45-55 CFM
  • Dimensions

    Model #RP-1000E6
    Height 7.89" /
    199.6mm
    Square Drive 0.75" /
    19mm
    Length 13.74" /
    348.9mm
    Diameter 1 2.62" /
    66.5mm
    Diameter 2 1.87" /
    47.5mm



    Line-Drawing-RP-E6-BLK

  • Features

    Integral 6

    Integral 6" Nose Extension

    The nose of the tool has an integral 6" extension at the 3/4" square drive.
    Ergonomic Pistol Grip

    Ergonomic Pistol Grip

    The pistol grip of the RP Series was designed to allow for firm and comfortable positioning. It is finished with a durable slip-resistant textured coating.
    Compact Air Motor

    Compact Air Motor

    The lightweight ultra-efficient air motor is designed for easy maintenance.
    Cast Reaction Arm

    Cast Reaction Arm

    The sturdy "non-welded" construction provides a safe and strong reaction point.
    Internal Gear Drive

    Internal Gear Drive

    The RP Series employs a patented planetary gear design which increases torque multiplication without added weight and bulk.
    Dual Operation Trigger

    Dual Operation Trigger

    The trigger allows for forward and reverse operation without grip repositioning
  • Accessories

    Filter/Regulator/Lubricator Unit

    Filter/Regulator/Lubricator Unit

    The RP-FRL Unit is used to filter and lubricate the air supply, as well as regulate the pressure to achieve desired torque output. The unit comes complete with a pressure gauge and 8’ connecting air hose, and is fitted with a one-piece welded steel frame for protection and transport.
    Long Extended Reaction Arm

    Long Extended Reaction Arm

    Used with deepwell sockets
    Socket to Socket Reaction Arm

    Socket to Socket Reaction Arm

    Allows the operator to react against the adjacent nut using a cup to protect it. It allows to adjust the socket to socket between 4” and 6” away from the square drive of the tool
    Straight Reaction Arm

    Straight Reaction Arm

    This arm is designed to accommodate a reaction point at a 90 degree angle from the drive.
    Weld Blank

    Weld Blank

    This reaction arm is made of raw steel and allows the customer to fabricate their own custom arm. The weld blank is splined to fit the RP Series and includes heat treating specifications.

  • Documents / Downloads

Lees meer: Raptor E6 Extended Wrenches

RP SERIES Pneumatic Torque Wrench

The Most Robust Pneumatic Gear Drive Wrench In The Industry

The RP series handle makes it appear like an impact wrench, but once you pull the trigger nothing about this tool relates to the word “IMPACT”. This is a smooth running instrument for applying vast amounts of torque in a continuous fluid like manner. With the use of standard industrial sockets every application is met with repeatable torque to an accuracy of +/-5%.

NOTHING ABOUT THIS TOOL RELATES TO THE WORD IMPACT!

  • Made In USA
  • Five Models From 78 Ft/lbs to 5,990 Ft/lbs 106nm. to 8121nm.
  • Every Unit Calibrated In ISO17025 Laboratory
  • Manufactured With AQ Certified Alloys
  • Genuine TorcUP Design

When it comes to the saying “more to it than meets the eye”, this is an understatement when creating an accurate and durable pneumatic torque wrench. The RP series wrenches combine the most tight tolerance air drive motors along with a planetary gear stack capable of handling more torque than the tool is cited as capable of – YES WE BUILT IN A SAFETY FACTOR! The specifications we state are the specifications you get when you purchase an RP series wrench! From the speed to the torque to the weight to the operational sound level – WHAT IS ADVERTISED IS WHAT YOU GET! And what you get is a tool that you can count on! So what matters to you? Marketing hype or the ABSOLUTE MOST DURABLE PNEUMATIC TORQUE WRENCH SERIES EVER PRODUCED!


  • Specifications

    Model #Raptor 500Raptor 1000Raptor 2000Raptor 3000Raptor 6000
    Square Drive 3/4" 1" 1" 1" 1 1/2"
    Min. Torque (Ft/Lbs) 78 148 231 484 714
    Max. Torque (Ft/Lbs) 530 1030 2015 3070 5990
    Min. Torque (Nm) 106 201 313 656 968
    Max. Torque (Nm) 719 1396 2732 4162 8121
    Output Accuracy @ Set Torque +/- 5% +/- 5% +/- 5% +/- 5% +/- 5%
    Repeatability 100% 100% 100% 100% 100%
    Duty Cycle 100% 100% 100% 100% 100%
    Weight w/o Arm 9lbs/4.1kg 12lbs/5.4kg 16lbs/7.3kg 20lbs/9.1kg 36lbs/16.3kg
    RPM @ 10 psi 16.5 7 3.5 1.75 1.25
    Tool Max psi 80 70 3.5 1.75 1.25
    RPM @ Max psi 44 15 9 4 3
    Requirements Air pressure 10-90 psi / Flow 45-55 CFM
  • Dimensions

    Model #Raptor 500Raptor 1000Raptor 2000Raptor 3000Raptor 6000
    Height 7.89" /
    200.4mm
    7.89" /
    200.4mm
    7.89" /
    200.4mm
    8.06" /
    204.7mm
    8.69" /
    220.7mm
    Square Drive 0.75" /
    19.05mm
    1.00" /
    25.4mm
    1.00" /
    25.4mm
    1.00" /
    25.4mm
    1.50" /
    38.1mm
    Length 6.80" /
    172.7mm
    8.87" /
    225.3mm
    9.40" /
    238.8mm
    10.62" /
    269.7mm
    12.32" /
    312.9mm
    Diameter 2.56" /
    65mm
    2.85" /
    72.4mm
    3.09" /
    78.5mm
    3.75" /
    95.3mm
    5.00" /
    127.0mm
  • Features

    Sturdy Square Drive

    Sturdy Square Drive

    The design of the square drive allows for direct socket engagement.

    Ergonomic Pistol Grip

    Ergonomic Pistol Grip

    The pistol grip of the RP Series was designed to allow for firm and comfortable positioning. It is finished with a durable slip-resistant textured coating.

    Compact Air Motor

    Compact Air Motor

    The lightweight ultra-efficient air motor is designed for easy maintenance.

    Cast Reaction Arm

    Cast Reaction Arm

    The sturdy "non-welded" construction provides a safe and strong reaction point.

    Internal Gear Drive

    Internal Gear Drive

    The RP Series employs a patented planetary gear design which increases torque multiplication without added weight and bulk.

    Dual Operation Trigger

    Dual Operation Trigger

    The trigger allows for forward and reverse operation without grip repositioning.
  • Accessories

    Filter/Regulator/Lubricator Unit

    Filter/Regulator/Lubricator Unit

    The RP-FRL Unit is used to filter and lubricate the air supply, as well as regulate the pressure to achieve desired torque output. The unit comes complete with a pressure gauge and 8’ connecting air hose, and is fitted with a one-piece welded steel frame for protection and transport.

    Long Extended Reaction Arm

    Long Extended Reaction Arm

    This arm provides a longer reach, working with deepwell sockets.

    Sliding Straight Arm

    Sliding Straight Arm

    This arm is designed for socket to socket reaction. The drive/cup design protects the adjacent nut from direct reaction and is adjustable from 4" to 12".

    Straight Reaction Arm

    Straight Reaction Arm

    This arm is designed to accommodate a reaction point at a 90 degree angle from the drive.

    Weld Blank

    Weld Blank

    This reaction arm is made of raw steel and allows the customer to fabricate their own custom arm. The weld blank is splined to fit the RP Series and includes heat treating specifications.

    Nose Extension

    Nose Extension

    The extensions fasten directly to the nose of the tool, allowing for reach into hard to access applications. This works with the standard reaction arm.

    Pinch Avoidance Safety System

    Pinch Avoidance Safety System

    This safety system allows for dual handed operation of the RP Series. The operator keeps one hand on the trigger and the other on the PASS system - upon release of the PASS trigger, the tool immediately stalls.

    Tool Carrying Handle

    Tool Carrying Handle

    This ergonomic handle is durable and allows for left or right hand operation, as well as vertical and horizontal positioning. It can be factory or field installed and works on all RP models.

  • Documents / Downloads

Lees meer: Raptor Standard Torque Wrenches

Plate Heat Exchanger Gearbox

To open or close you Heat exchanger

Wij leveren een lucht of electrische aangedreven momentsleutel, enkel of multispeed.

  • Download Brochure
  • Dit e-mailadres wordt beveiligd tegen spambots. JavaScript dient ingeschakeld te zijn om het te bekijken.

Lees meer: Heat Exchanger Gearbox

Copyright © 2019 - BRAND TS - All Rights Reserved. - Jagerserf 35 - 3851 SM Ermelo - Tel. +31 341 424326 - Dit e-mailadres wordt beveiligd tegen spambots. JavaScript dient ingeschakeld te zijn om het te bekijken.
