DELTA-I 30

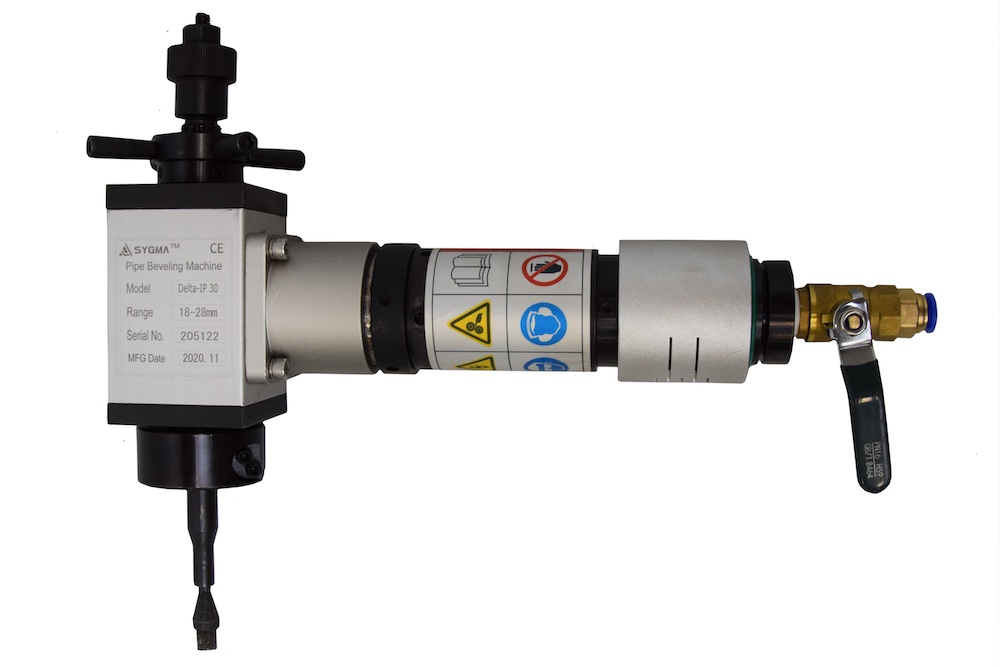

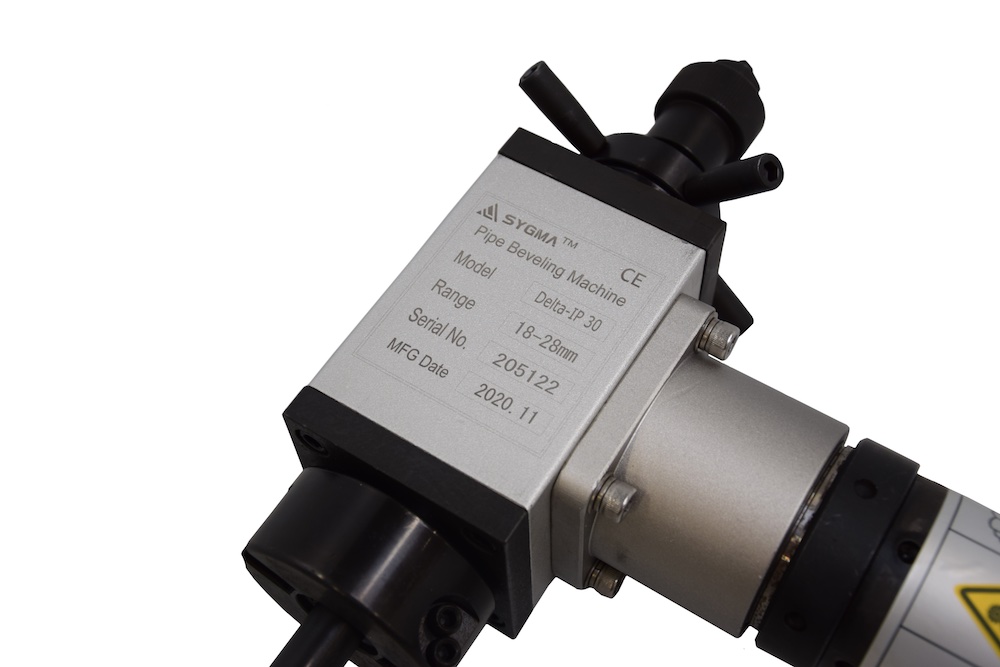

The Sygma™ Delta-I 30 has a compact design with a self-centering system enabling a quick and efficient installation of the tool resulting in high accuracy.

MORE INFO

CONTACT

Pneumatic

Motorisation: Pneumatic

Power Supply: 2000L/min & 1.0MPa

Motor Power: 1H

Electric

Motorisation: Electric Metabo Motor

Power Supply: 220-240V 1PH 50/60Hz

Motor Power: 1300W

General Features

Motorisation: electric or pneumatic
Lightweight
Self centering with high precision
Small work radius
Ratchet tool to adapt feed
Easy to set up (plug&play)
Compact design

Packing List

Bevelling tool
Case
Expansion block (8)
0° facing tool (1)
30°Bevelling tool (1)
37.5° beveling tool (1)
Allen key (1)
Hexagon wrench (2)
Certificate
Manual

Technical Data

Operational Data

Range (ID)	Pipe Thickness	Rotation Speed
Min: Ø 18 mm / Max: Ø 28 mm	< 15 mm	50 rpm

Dimensional Data

Case Dimensions	Gross Weight	Net Weight
57x43x17 cm	13 kg	10 kg (ready to use)

Motorisation

Electric (Metabo)		Pneumatic
Power Supply	Motor Power	Power Supply	Motor Power
220-240v 1PH 50/60 Hz	1300 W	2000 l/min & 1.0 Mpa	1 HP

Explore Delta-I 30

Easy to set up

Compact design

Lightweight

Self centering
