Met de introductie van de VT-serie is uw mogelijkheid om industriële bevestigingsmiddelen aan te draaien nu zo eenvoudig geworden als snel opladen. In een bereik van 175Nm. t/m 8133Nm. Deze accu momentsleutel van TorcUP de VOLTA is ontworpen om elke toepassing moeiteloos uit tw voeren. Volledig opgeladen in minder dan 60 minuten, levert de lithiumbatterij van de VOLTA voldoende vermogen om honderden bevestigingen aan te draaien zonder slangen of snoeren om uw bereik te vergroten. Binnen de VOLTA bevindt zich een digitaal motor-vectoringsysteem dat een nauwkeurig en herhaalbaar koppel levert over het volledige bereik van elk model. De VOLTA is een voorbeeld van de duurzaamheid, betrouwbaarheid en veiligheid die elke industriële sleutel die TorcUP vervaardigt sinds de oprichting van het bedrijf in 1996 kenmerkt.
De nauwkeurig ontworpen borstelloze motor van de Volta levert efficiëntie, langere bedrijfstijd en langere duurzaamheid, terwijl het configureerbare koppelbereik zorgt voor gebruiksgemak en herhaalbaarheid. De interne borstelloze technologie van het gereedschap zorgt er ook voor dat de sleutel koeler werkt, waardoor veiligheid bij boutverbindingen en veelzijdigheid in ruwe omgevingen wordt geboden. Extra functies zijn onder meer een digitaal display, instellingen voor koppelgeheugen, automatische reactiearmontgrendeling en conversie van ft / lb naar Nm. Neem vandaag nog contact met ons op voor een gratis demo!
Model Number | VOLTA-500 | VOLTA-1000 | VOLTA-2000 | VOLTA-3000 | VOLTA-6000 |
---|---|---|---|---|---|
Square Drive | 3/4" | 1" | 1" | 1" | 1 1/2" |
Min Torque (ft/lbs) | 120 | 250 | 500 | 750 | 1200 |
Max Torque (ft/lbs) | 500 | 1000 | 2000 | 3000 | 6000 |
Min Torque (nm) | 175 | 350 | 700 | 1025 | 1626 |
Max Torque (nm) | 655 | 1355 | 2700 | 4045 | 8133 |
Weight w/o Arm & Battery | 8.3lbs/3.8kg | 11.5lbs/5.2kg | 13.1lbs/5.9kg | 19.6lbs/8.9kg | 33.5lbs/15.2kg |
Weight w/ Arm & Battery | 10.4lbs/4.7kg | 14.5lbs/6.6kg | 15.9lbs/7.2kg | 22.5lbs/10.2kg | 43.3lbs/19.6kg |
RPM @ min torque | 12 | 2 | 1 | 0.5 | 0,9 |
RPM @ max torque | 20 | 8 | 5 | 2 | 1,2 |
Requirements | Charger Requirements: 110 - 120 V (50-60 Hz) and 230 - 240 V (50-60 Hz) |
Model Number | VOLTA-500 | VOLTA-1000 | VOLTA-2000 | VOLTA-3000 | VOLTA-6000 |
---|---|---|---|---|---|
Height | 10.40” / 264.2mm | 10.40” / 264.2mm | 10.40” / 264.2mm | 10.40” / 264.2mm | 11.39” / 289.2mm |
Square Drive | 0.75"/ 19.05mm | 1" / 25.4mm | 1" / 25.4mm | 1" / 25.4mm | 1 1/2" / 38.1mm |
Length | 8.86” / 225.0mm | 10.97” / 278.6mm | 11.45” / 290.8mm | 13.94” / 354.1mm | 14.86” / 377mm |
Diameter | 2.56" / 65.0mm | 2.85" / 72.4mm | 3.09" / 78.5mm | 3.75" / 95.3mm | 5,00" / 127mm |

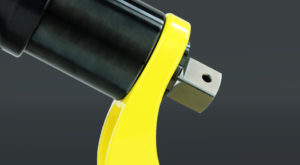

The hardened alloy steel square drive is designed for durability and direct socket engagement.
The pistol grip of the VT Series is engineered to allow for firm and comfortable positioning. The glass-filled nylon handle has a sturdy, slip-resistant overmold.
The high-efficiency brushless motor provides longer run-time and lower operational temperatures.
The sturdy "non-welded" construction provides a safe and strong reaction point.
The VT Series has a patented planetary gear design that provides consistent torque with no impacting.
The soft-start trigger provides added safety to the operator, and the ergonomic selector allows forward and reverse operation without grip repositioning.
The VT Series has an 18V 6.2 Ah LiHD rechargeable battery that provides extended run-time and the freedom of cordless operation.
The Volta's 18V 6.2 Ah LiHD Battery provides cordless freedom and extended run-time.
The Volta's premium, air-cooled lightning fast charger will have you ready to torque in under 60 minutes.
This arm is designed for socket to socket reaction. The drive/cup design protects the adjacent nut from direct reaction and is adjustable from 4" to 12".
This reaction arm is made of raw steel and allows the customer to fabricate their own custom arm. The weld blank is splined to fit the VT Series and includes heat treating specifications.
Allows the operator to react against the adjacent nut using a cup to protect it. It allows to adjust the socket to socket between 4” and 6” away from the square drive of the tool.
