Asuitlijn systeem TKSA 71

Shaft alignment tool TKSA 71

SKF TKSA 71 levert precisie en duurzaamheid met dit high-end systeem

Ontworpen voor professionele uitlijning in ruwe industriële omgevingen, de TKSA 71 vult de SKF lijn aan met een high-end as uitlijn apparatuur. Het systeem is zeer veelzijdig met de ultra-compacte meetkoppen bijzonder geschikt voor gebruik in beperkte ruimten. De speciale software bied verschillende soorten metingen aan zoals de horizontale en verticale asuitlijning, losse voet, spacer schaft en machine trein. Uitlijning met de beste prestaties en lange termijn industriële duurzaamheid worden bereikt met een innovatief instrument ontwerp dat hoge meetnauwkeurigheid en uitstekende bescherming tegen stof en water in industriële omgeving biedt..

TKSA 71 Ultra-compacte meet sensors zijn IP67 en draadloos oplaadbaar.

De SKF TKSA 71 functioneren snel en intuïtief met zes software apps op maat gemaakt voor verschillende soorten uitlijningen. Ontworpen voor gebruik zonder voorafgaande training, deze eenvoudige te gebruiken apps zijn beschikbaar voor zowel Android als iOS platformen en vrij te downloaden. Met uitgebreide funkties zoals automatische Pdf rapporten, exporteren en opties voor het delen van deze rapporten, instructievideo's in de app, ingebouwde tolerantie richtlijnen, 3-D live view, thermische groei compensatie, compensatie van trillingen of andere externe storingen en een volledig functionele demonstratieprogramma. Kijk onder op het tabblad TKSA uitlijn Apps voor meer informatie.

Shaft alignment tool TKSA 71
koffer inhoud van TKSA 71 asuitlijn systeem

Kenmerken en voordelen

  • Eenvoudig in gebruik - Intuïtieve software-applicaties (apps), begeleid uitlijning proces en uitleg met video's.
  • Brede toepassingen - Uitgebreide accessoires en speciale software toepassingen.
  • Uitlijning met de beste prestaties - maximaal 10 meter meetafstand, filter t.b.v. trillingen of andere externe invloeden, meet flexibiliteit, slechts 40 graden (2 x 20º) rotatie is vereist, automatische meting en uitlijnen / meten met streefwaarden.
  • Optimale bescherming in een industriële omgeving - Volledig afgedichte meetsensor behuizing, (IP67) stof en water afdichting.
  • Ultra-compacte meet sensors - Gebruik in zeer beperkte ruimten.
  • Robuust draagbare koffer - Volledige bescherming, eenvoudig transport en het draadloze opladen in de koffer.

Technische Data

Sensors and communication
20 mm (0.8 in.) PSD with red line laser Class 2; electronic inclinometer ±0,1°; Bluetooth 4.0 LE
System Measuring distance
0.04 to 10 m (0.13 to 32.8 ft)
Measuring errors / displayed resolution
<1% ±10 μm / 10 μm (0.1 mil)
Operating time and charging
~8 hours, rechargeable Li-ion battery, 10 min. wireless charging for 1 hour usage
Measuring unit dimensions / weight
52 × 64 × 33 mm (2.1 × 2.5 × 1.3 in.) / 130 g (4.6 oz.)
Operating device
TKSA DISPLAY, Galaxy Tab Active and iPad mini recommended, iPad 3rd generation, iPod touch 5th generation, iPhone 4S, Galaxy S4 or above (all not included)
Software / App update
Apple App Store or on Google Play Store
Operating system requirements
Apple iOS 9 or Android OS 4.4.2 (and above)
Alignment applications
Horizontal shaft alignment, vertical shaft alignment, soft foot, spacer shaft alignment, values, machine train shaft alignment
Alignment method
3 position measurement with guided 9–12–3 positions, free measurement (min. 40° total rotation), automatic measurement, disturbance compensation, target alignment values
Live correction values
Live values for vertical and horizontal machine position correction Adjustable shocks compatible
Extra features
Guided alignment measurements, 3-D live view, screen flip, comprehensive automatic PDF reports
Shaft diameters
20 to 150 mm diameter (0.8 to 5.9 in.), up to 450 mm (17.7 in.) with included extension chains
Max. recommended coupling height
45 mm (1.8 in.) with standard rods, plus 120 mm (4.7 in.) per set of extension rods
IP rating
IP67
Total weight (incl. case)
TKSA 71: 3,9 kg (8.6 lb), TKSA 71/PRO: 12,5 kg (27.6 lb)

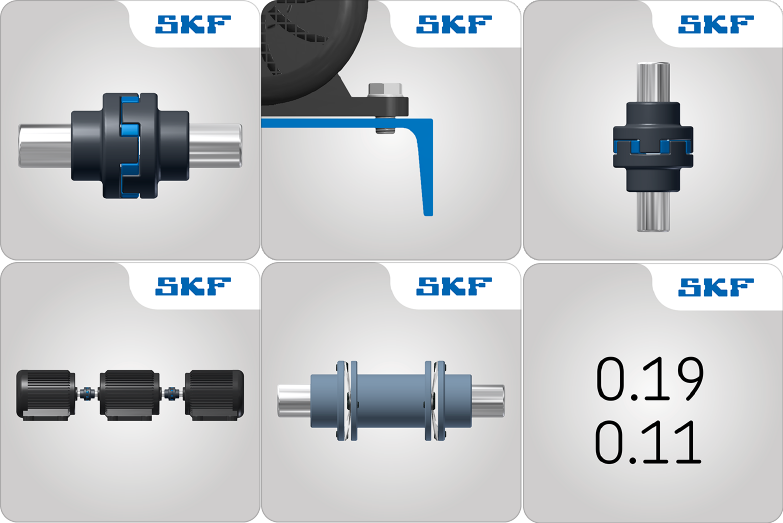

Applicaties

Soft foot

Soft foot

Easy and intuitive alignments of horizontal shafts with additional features including automatic measurement, minimal 40° total rotation, 9-12-3 guidance and alignment customisation with target values. Available for TKSA 51 and TKSA 71
Spacer shaft alignment

Spacer shaft alignment

Accommodates special requirements of spacer shafts and facilitates the alignment process. Available for TKSA 71
Values

Values

Allows the shaft alignment tool to be used as digital dial gauges; operators can record absolute, zeroed and halved readings to perform customised alignments with manual calculations. Available for TKSA 71

Pakketten

TKSA 71

TKSA 71

– Measuring units with wireless charging pods – Carrying case meets most airlines’ carry-on requirements – Standard accessories
TKSA 71D

TKSA 71D

– TKSA71 – Protected display device for industrial use, TKSA DISPLAY
TKSA 71/PRO

TKSA 71/PRO

– Measuring units with wireless charging pods – Trolley case with additional storage space – Standard and advanced accessories
TKSA 71D/PRO

TKSA 71D/PRO

– TKSA 71/PRO – Protected display device for industrial use, TKSA DISPLAY
Available Packages and upgrade kits

Available Packages and upgrade kits

The TKSA 71/ACCESS is an upgrade kit from TKSA 71 to 71/PRO that can be ordered separately and includes advanced accessories and the large trolley case. The TKSA DISPLAY is an Android tablet with min 7 in. screen size, protective cover for industrial environments and pre-installed apps. The TKSA DISPLAY can also be ordered separately.
TKSA DISPLAY

TKSA DISPLAY

The TKSA DISPLAY is an Android tablet with min 7 in. screen size, protective cover for industrial environments and pre-installed apps. The TKSA DISPLAY can also be ordered separately.

Measuring device: Measuring units (M & S) with standard V-bracket (1), Wireless charging pods with USB cable (2), Tape measure (3)
Standard accessories: Extension chains (4), Extension rods (5), Mounting magnets (6)
Advanced accessories: Sliding brackets (7), Offset brackets (8), Additional extension rods (9), Magnetic bases (10)
