TorcUP SV-SERIE Hydraulische Momentsleutelpomp

De meest synchrone hydraulische momentsleutelpomp in de industrie

De hydraulische momentsleutelpomp uit de SV-serie is de perfecte synthese van continu ratelen en vermogen naar koppel. Volledig instelbereik tot 10.000 psi / 700 bar.

"SPEED" -modus voor snelsluiting

Made in the USA
Standaard met Multi-Port
Beschikbaar in 115V en 230V
Inclusief 3 Meter (15′) Hydraulische twin slang
Een TorcUP-ontwerp

Wat maakt de SV-serie "SUPER"? Het is de ingebouwde schakeling waarmee de operator het specifieke gereedschap kan aanwijzen dat wordt gebruikt. De pomp zal dan automatisch in de modus "SPEED" schakelen om de bevestigingen snel uit te schakelen. Zodra de moer op zijn plaats zit, activeert u de koppelknop om de klus naar de uiteindelijke vereiste instelling te brengen. Als snelheid uw focus is, dan is de SV-serie het antwoord.

Specificaties

Model #	Reservoir Capacity	Valve Model	Valve Style / Function	Pendant	Motor Spec	Flow Rate	Weight
SV1000		Torque	Auto Retract / Advance/Retract	Motor / Solenoid Control	1.5 HP @115VAC Single Phase	700 cu.in./min. @ 1,100 psi 55 cu.in./min.@10,000 psi (9.4 litres / min. @ 75 bar 0.9 / min. @ 700bar)	65.75 lbs / 29.8 kg
SV1000-230V	1.5 gal / 5.7 litre	Torque	Auto Retract / Advance/Retract	Motor / Solenoid Control	1.5 HP @230VAC Single Phase	701 cu.in./min. @ 1,100 psi 55 cu.in./min.@10,000 psi (9.4 litres / min. @ 75 bar 0.9 / min. @ 700bar)	65.75 lbs / 29.8 kg

Afmetingen

Usable Reservoir Capacity A B C D E

1.5 gal. /
5.7 litre 8.75 in /
222 mm 5.96 in /
151 mm 15.13 in /
384 mm 18.1 in /
460 mm 16.85 in /
428 mm
Accessoires

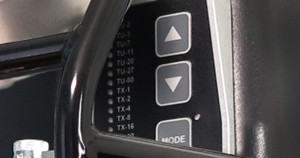

Tool Selection Display

Industrial grade LED membrane switch enables quick selection of tool for auto cycle operation.

Powerful 1.5 HP Motor

The permanent magnet motor driving the SV1000 Series runs at 1/3 of the RPM found in other hydraulic pumps. Field-proven gears run cooler and last longer to provide years of trouble free service

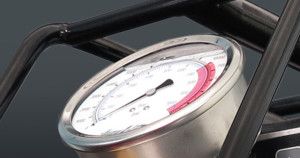

Precise PSI/Bar Gauge

Removable, easy-to-read 4" PSI/Bar gauge for ease of tool torque adjustment and monitoring.

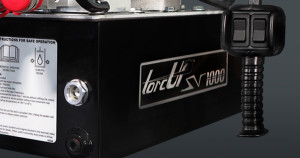

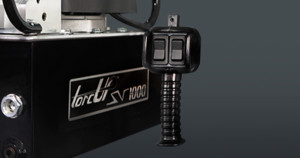

Rugged Remote

Each pump includes the 15' low-voltage ergonomic remote operation pendant. The durable design is suited for the harshest environments.

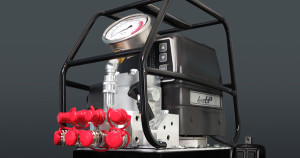

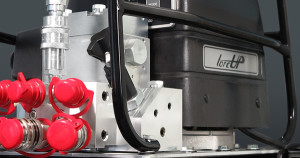

Built-In Protective Shroud and Roll Cage

The motor and electronics are enclosed in a safety shroud to protect the pump from the elements and other environmental contaminants. For added safety, the pump is also fitted with a sturdy roll cage for lifting and protection.

Industrial Reservoir

Powder coated aluminum reservoir is lightweight yet durable for operating in the harshest environments. The pump comes standard with a 1.5 gallon reservoir.

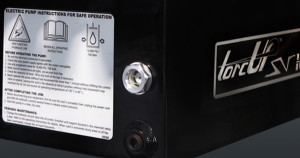

Easy View Sight Glass

Sight glass enables operator to monitor reservoir oil levels.

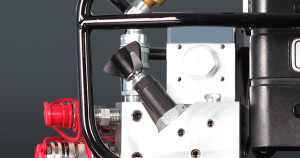

Pressure Adjustment Knob

The easily accessible knob allows the user to adjust the pressure output of the pump, increasing or decreasing torque when necessary.

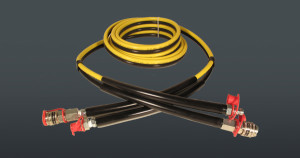

Twinline High Pressure Hydraulic Hoses

Each pump comes standard with one set of 15' twinline hydraulic hoses. The hoses are 4:1 safety rated and made of durable steel mesh in a protective rubberized coating.

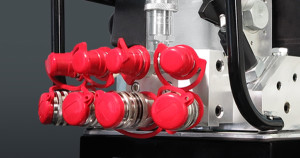

No Drip Quick Connect Couplers

These 3:1 rated safety couplers are designed for simple engagement. The coupler collar ensures safe operation. This model is configured for the quadra-torc option - running up to four tools simultaneously.
Accessories

Tool Selection Display

Industrial grade LED membrane switch enables quick selection of tool for auto cycle operation.

Powerful 1.5 HP Motor

The permanent magnet motor driving the SV1000 Series runs at 1/3 of the RPM found in other hydraulic pumps. Field-proven gears run cooler and last longer to provide years of trouble free service

Precise PSI/Bar Gauge

Removable, easy-to-read 4" PSI/Bar gauge for ease of tool torque adjustment and monitoring.

Rugged Remote

Each pump includes the 15' low-voltage ergonomic remote operation pendant. The durable design is suited for the harshest environments.

Built-In Protective Shroud and Roll Cage

The motor and electronics are enclosed in a safety shroud to protect the pump from the elements and other environmental contaminants. For added safety, the pump is also fitted with a sturdy roll cage for lifting and protection.

Industrial Reservoir

Powder coated aluminum reservoir is lightweight yet durable for operating in the harshest environments. The pump comes standard with a 1.5 gallon reservoir.

Easy View Sight Glass

Sight glass enables operator to monitor reservoir oil levels.

Pressure Adjustment Knob

The easily accessible knob allows the user to adjust the pressure output of the pump, increasing or decreasing torque when necessary.

Twinline High Pressure Hydraulic Hoses

Each pump comes standard with one set of 15' twinline hydraulic hoses. The hoses are 4:1 safety rated and made of durable steel mesh in a protective rubberized coating.

No Drip Quick Connect Couplers

These 3:1 rated safety couplers are designed for simple engagement. The coupler collar ensures safe operation. This model is configured for the quadra-torc option - running up to four tools simultaneously.
