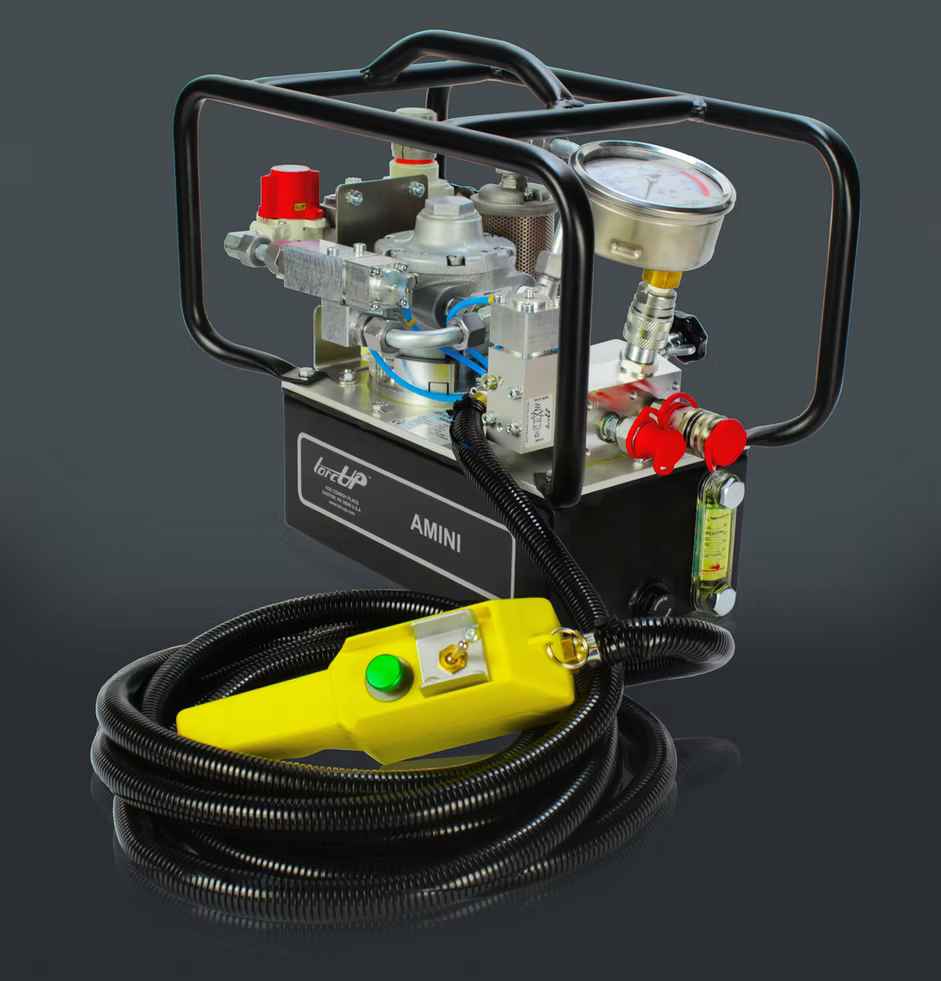

TorcUP AMINI pneumatic pump

Light, portable pneumatic pump of 17 kg
  • Brand
    TorcUP
  • Drive
    Pneumatic
  • Max. working pressure
    700 bar (10,000 psi)
  • Air requirement
    at least 3.8 bar (55 psi) at 35 CFM (approx. 1,000 l/min)
  • Air motor
    1.3 kW (1.7 pk)
  • Oil flow
    6.6 / 0.6 l/min (2 stages)
  • Reservoir
    5.3 l
  • Weight
    17 kg
  • Available for
    Buy
Request a quote
TorcUP AMINI pneumatic pump

The AMINI is a light, portable pump for hydraulic torque wrenches, driven by compressed air. The pressure is infinitely adjustable up to 700 bar (10,000 psi).

  • Two-stage pump of only 17 kg
  • Compressed air drive: at least 3.8 bar (55 psi) at 35 cfm (approx. 1,000 l/min)
  • With F/R/L unit (filter, regulator, lubricator)
  • Made in the USA

The AMINI brings torque to places where the size and weight of the pump matter. Because it runs on compressed air, you can also use it in parts of your plant where electrical equipment is not allowed.

Features

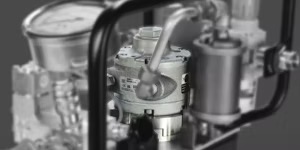

Heavy-duty air motor

1.7 hp, works from 3.8 bar (55 psi) at 35 cfm.

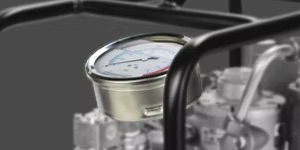

Accurate pressure gauge (psi and bar)

Large and easy to read, in psi and bar.

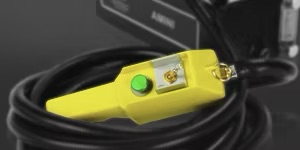

Rugged remote control

Full control at the push of a button.

Industrial reservoir

Light and durable.

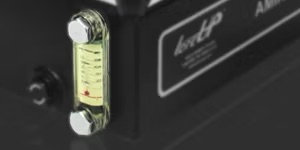

Sight glass

Oil level and oil temperature at a glance.

Exhaust muffler

Keeps the noise low: 77 dB.

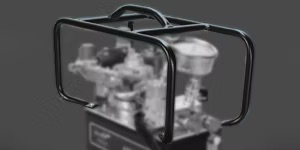

Protective cage

Supplied as standard.

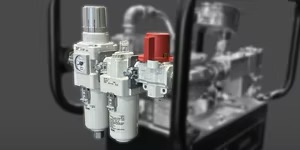

Built-in F/R/L unit

Filter, regulator and lubricator; the lubrication can be set to the right amount of oil for air tools.

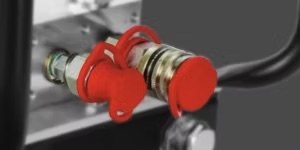

Drip-free quick couplers

Safety couplers with a 3:1 safety factor, easy to connect; the collar locks the coupler.

Specifications

Full technical specifications

Technical data

AMINI
Reservoir capacity 5.3 l (1.4 gal)
Valve Auto-retract
Air motor 1.3 kW (1.7 pk)
Minimum air requirement 3.8 bar (55 psi) at 35 CFM
Weight 17 kg (38 lbs)

Oil flow

Max. oil flow
Stage 1 (70 bar / 1,000 psi) 6.6 l/min (400 cu.in/min)
Stage 2 (700 bar / 10,000 psi) 0.6 l/min (40 cu.in/min)

Dimensions

PumpReservoir
Length 433 mm (17.0 in) 297 mm (11.7 in)
Width 249 mm (9.8 in) 178 mm (7.0 in)
Height 374 mm (14.7 in) 106 mm (4.2 in)

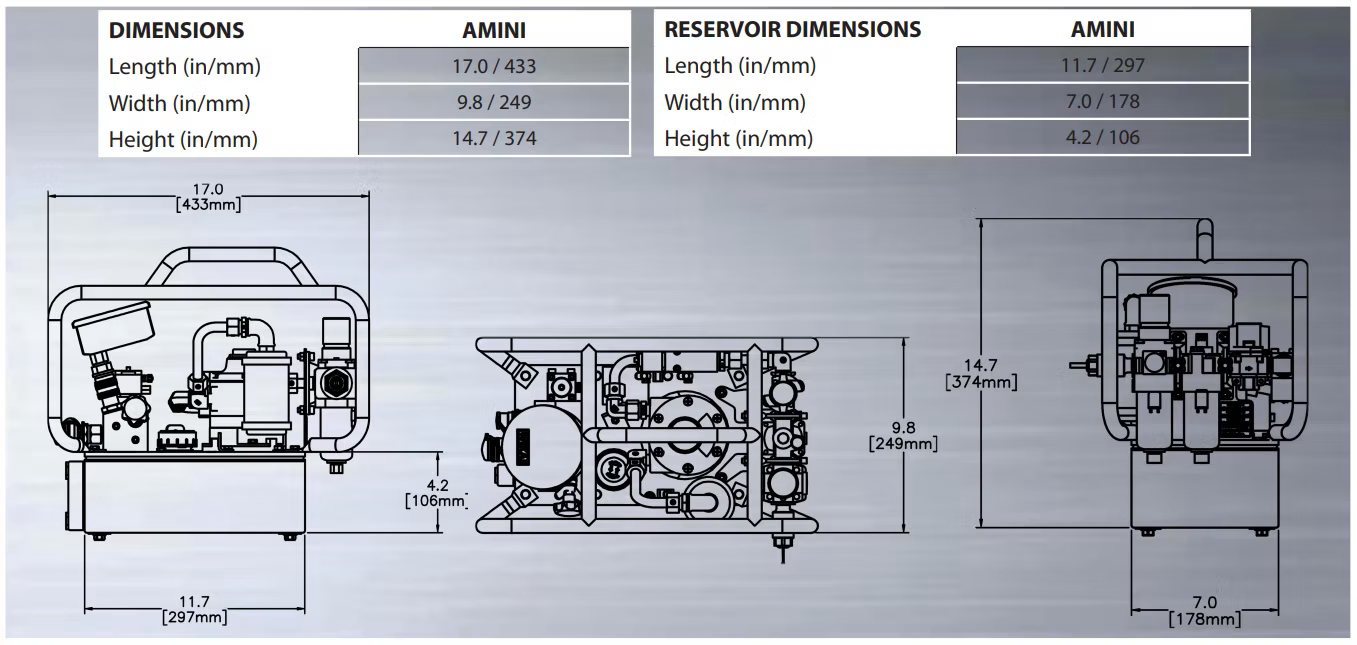

Dimension drawing AMINI

Accessories

Quadra-Torc option

Factory-fitted with a four-port manifold, to operate four wrenches at once.

Twinline high-pressure hoses

From 4.5 to 15 m; longer hoses to order.
