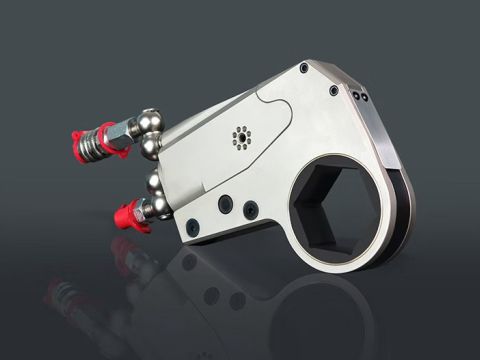

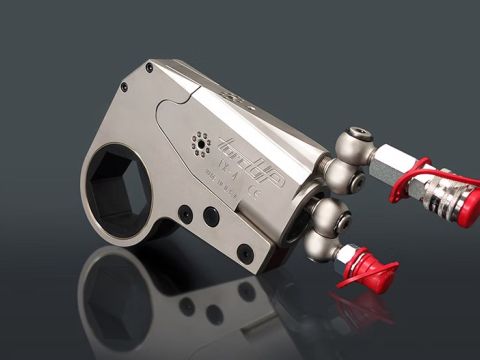

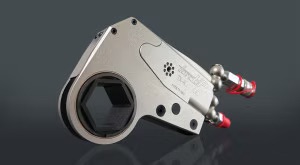

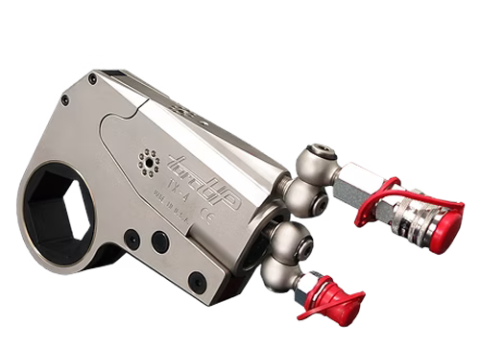

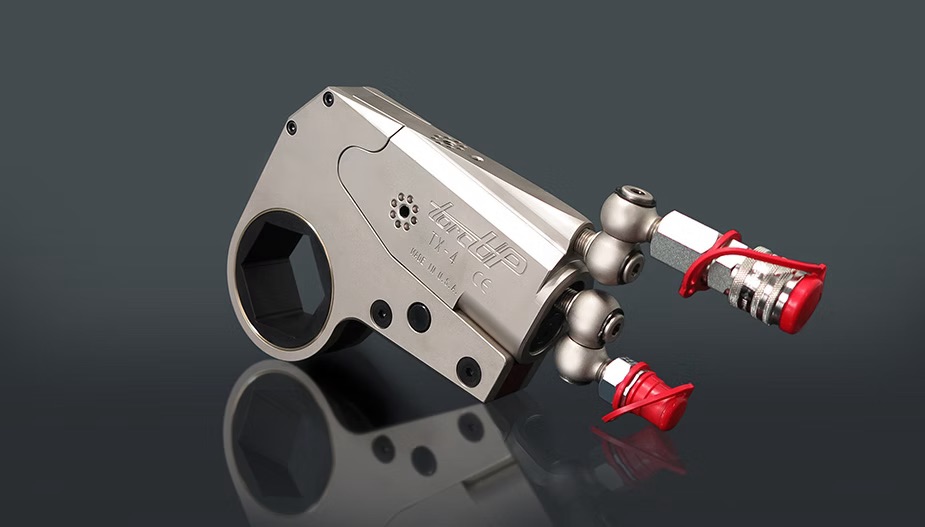

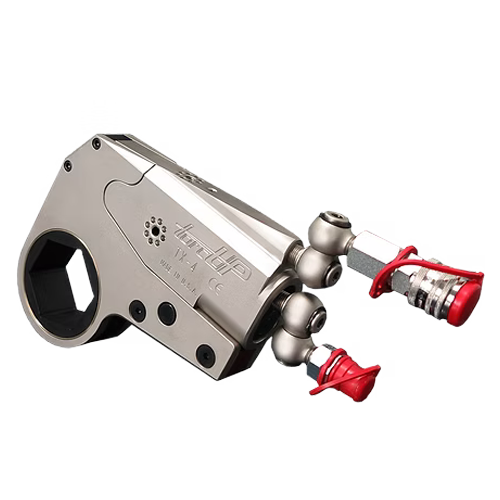

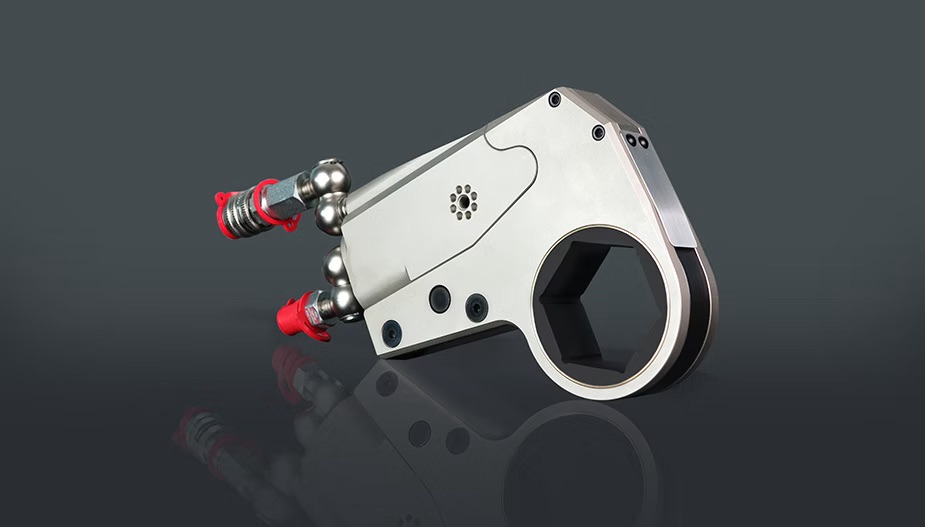

TorcUP TX hydraulic torque wrench

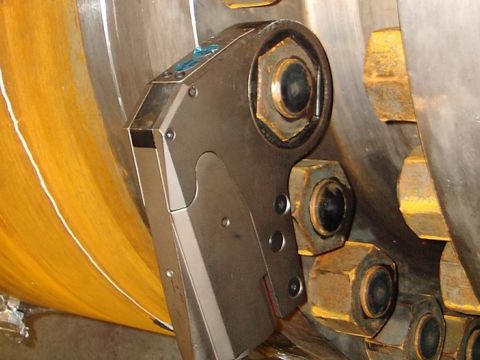

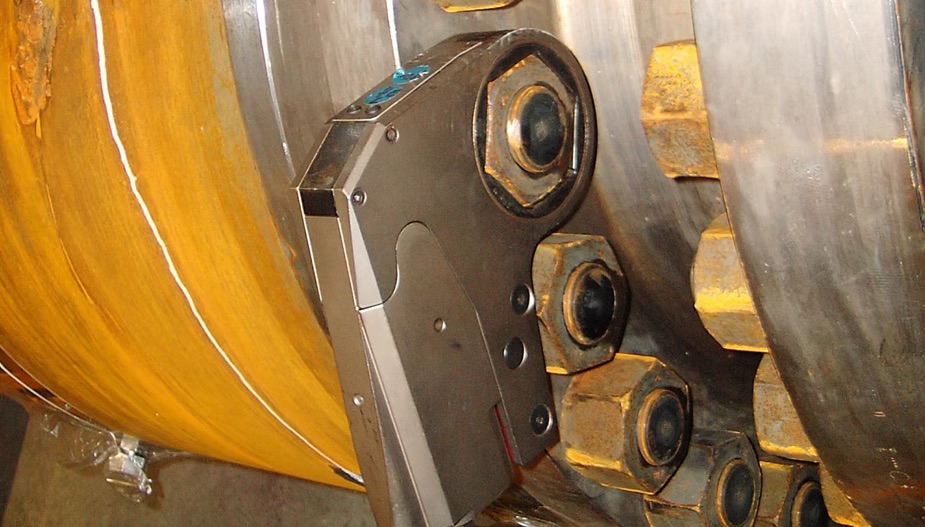

Low-profile hydraulic ring wrench cassette for bolts with little space around them
Features
Patented peanut-shaped piston
Cylinder and cassette are the same width. Glide pads reduce the friction and wear of the piston.

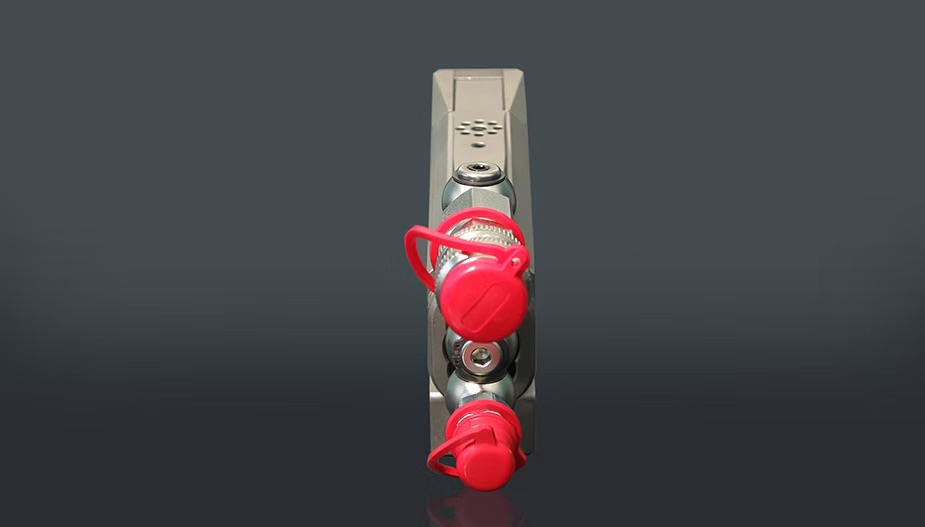

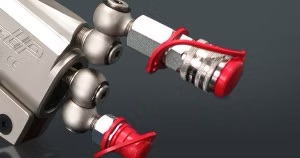

Two independent swivels
The hose connections swivel independently 360° × 360°, so the hoses do not kink.

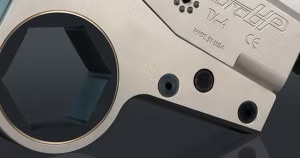

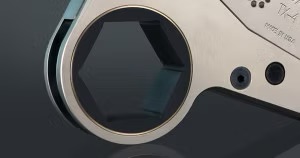

Hex cassettes (left)
Every cassette has steel alignment pins to the lower reaction surface, for extra rigidity.

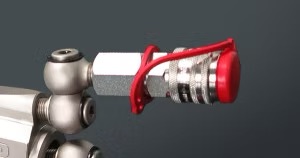

Drip-free quick couplers
Safety couplers with a 3:1 safety factor, easy to connect; the collar locks the coupler.

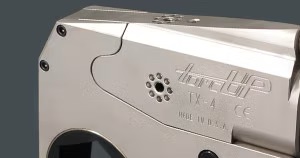

Cylinder and cassette made of 4340 steel
Both are made of very strong aircraft-grade 4340 steel.

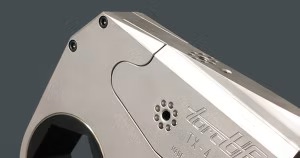

Small nose radius
This lets the wrench fit where other wrenches are too large.
In-line reaction surface
Ensures a reaction without torsion on the wrench every time.

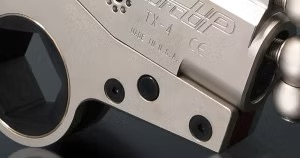

Single connecting pin
One pin connects the cassette to the cylinder: change cassettes without tools.
Variants

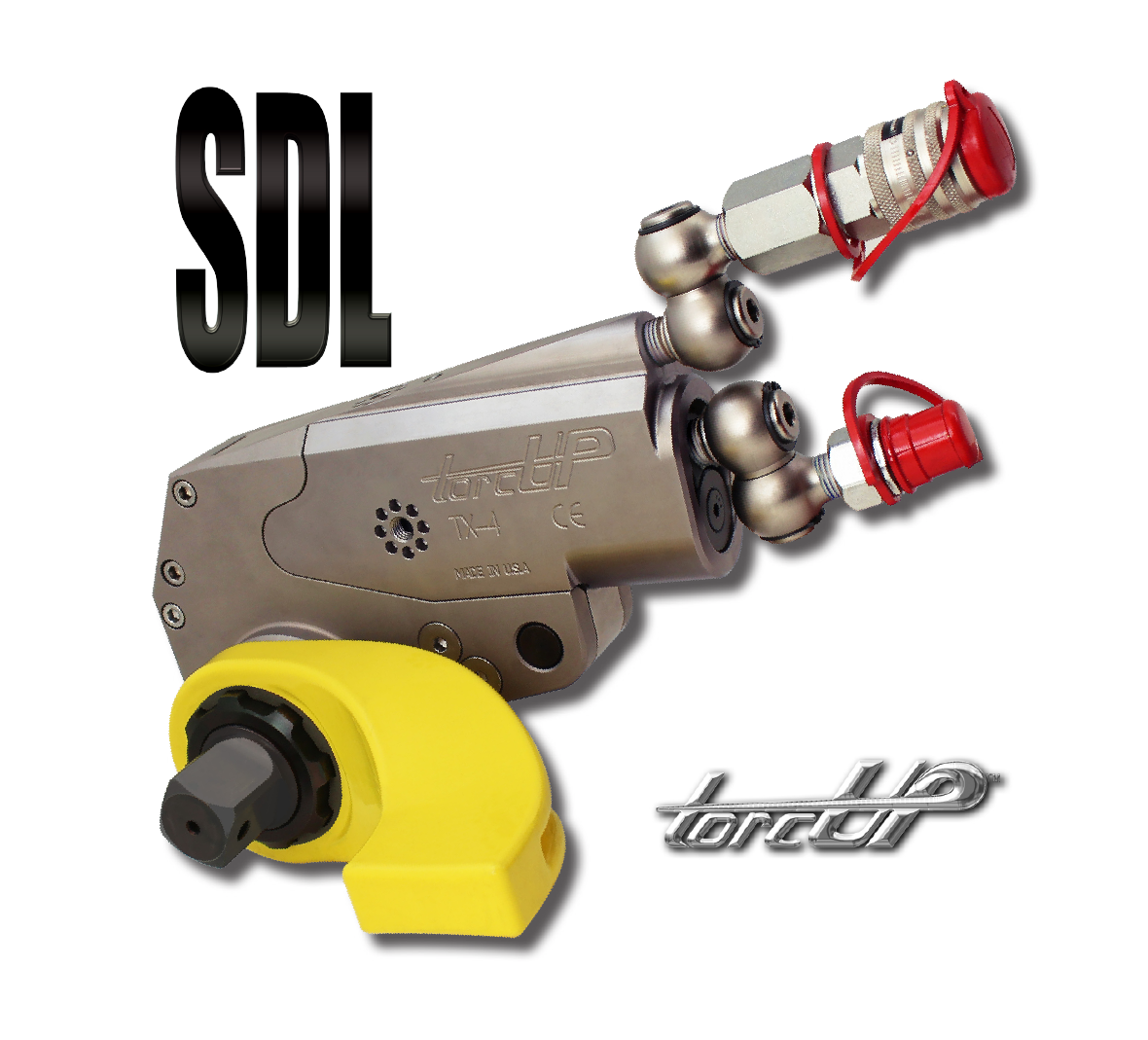

SDL cassette with square drive
Spanner wrench cassette, for even less space

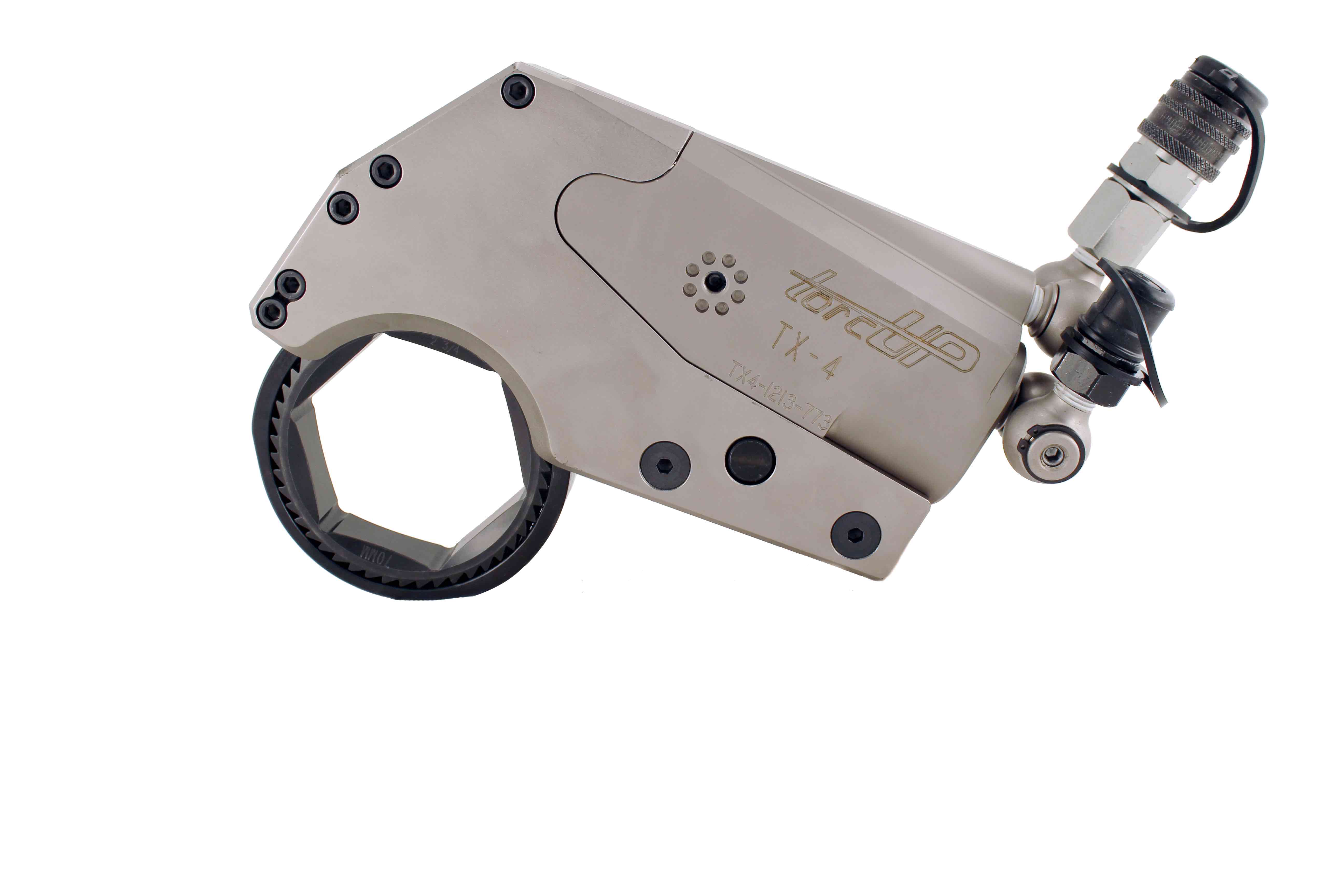

Slimline cassette, for example for BOPs

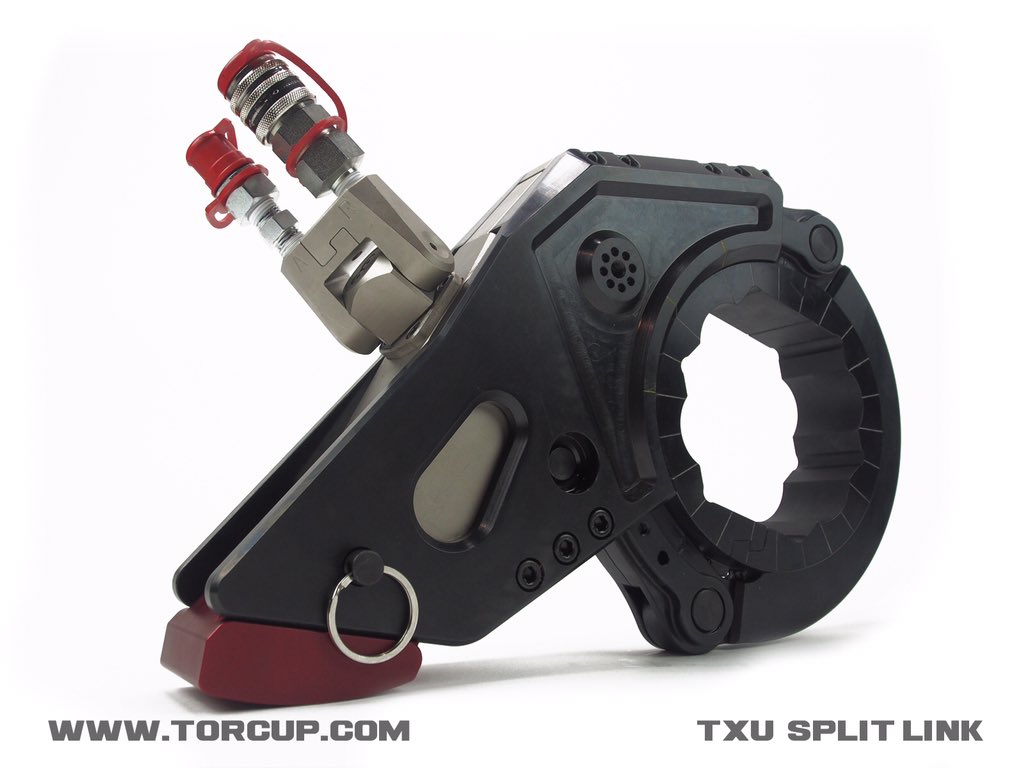

Fully split cassette

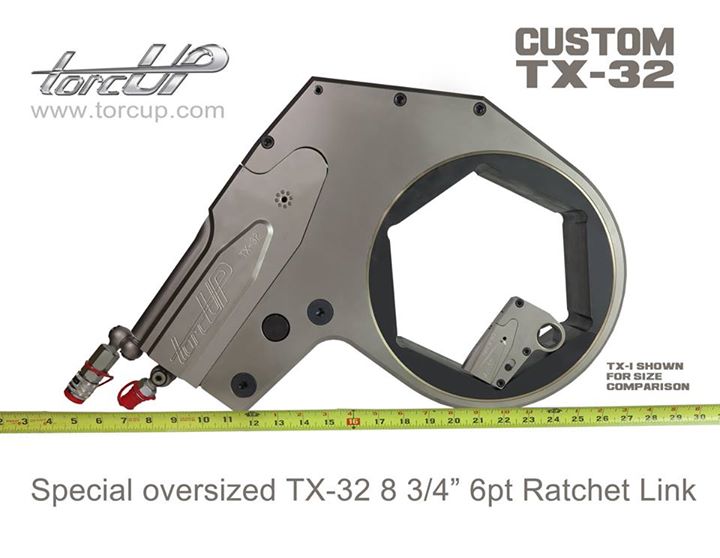

Ring wrench cassettes from 17 to 222 mm, or custom
Accessories

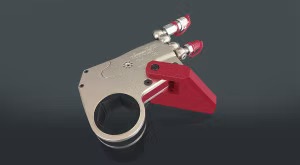

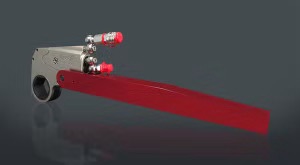

TX in-line reaction arm
Attaches to the cylinder and the cassette, for a reaction point further from the wrench.

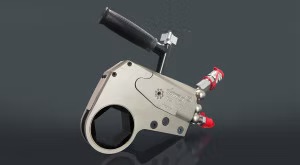

TX handle
Ergonomic handle for safe operation and positioning, with hands clear of the reaction points.
TX low reaction paddle
Provides a reaction point under the wrench or against the edge of the flange.
TX connecting pin with lanyard
The lanyard keeps the connecting pin on the wrench, so it does not get lost or fall when changing cassettes.

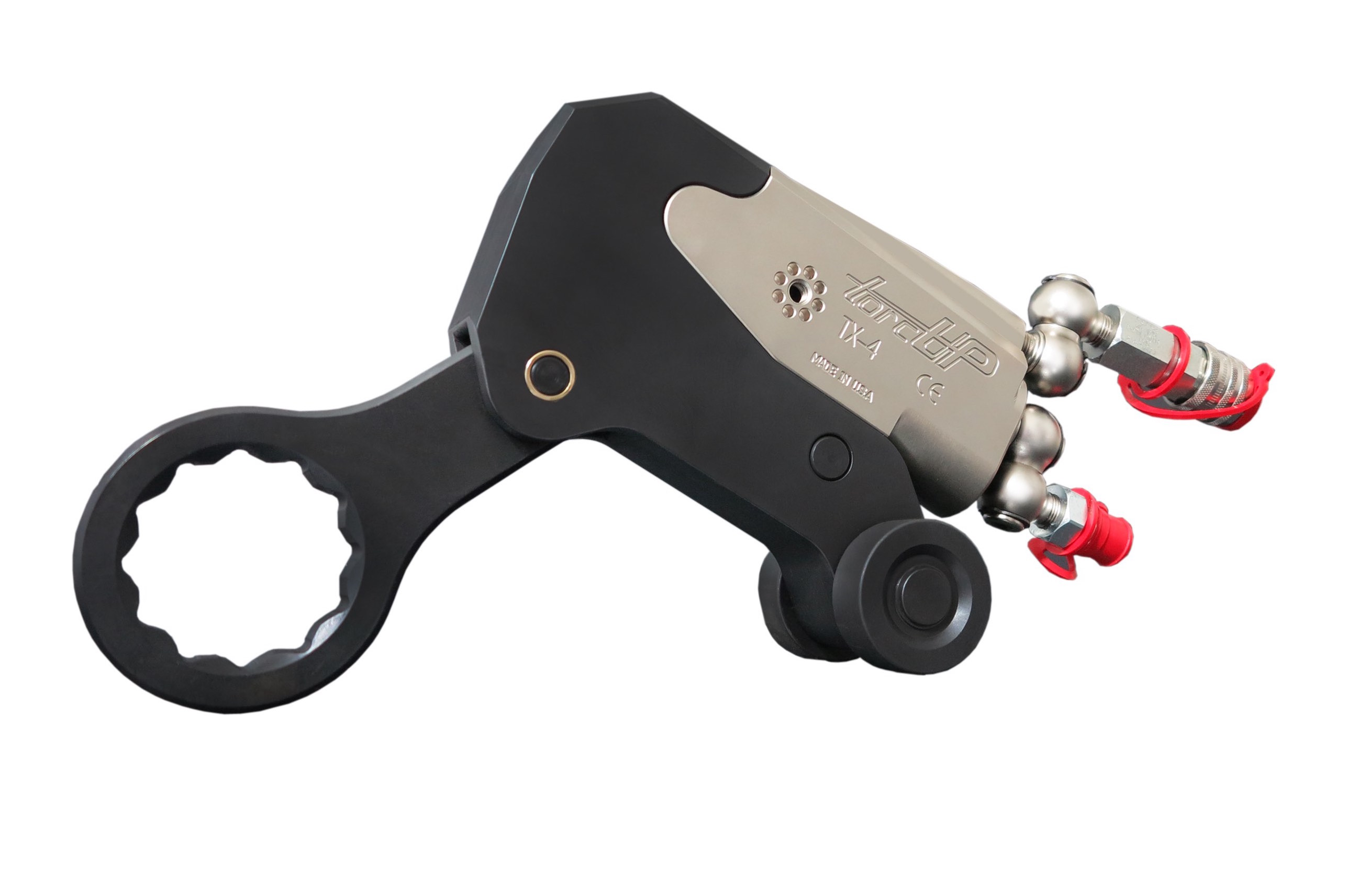

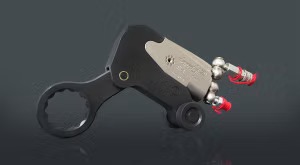

TX spanner wrenches
Closed standard sizes and open or closed custom versions, for applications where normal cassettes do not fit.
TX hex reducers
For all TX models, to reduce the hex of a cassette; 3/16" (5 mm) or more, as required.
TX hex to square drive adapter
Turns a cassette into a square drive (or hex drive), for use with industrial impact sockets.
