Bolt heating

HELIOS 35 induction bolt heating

Loosening and tightening hollow bolts of turbines and valves quickly and safely with induction
  • Brand
    Nuova Simat
  • Power
    25 kVA
  • Power supply
    400 V, 3-phase, 32 A
  • Weight
    205 kg
  • Available for
    Buy
Request a quote

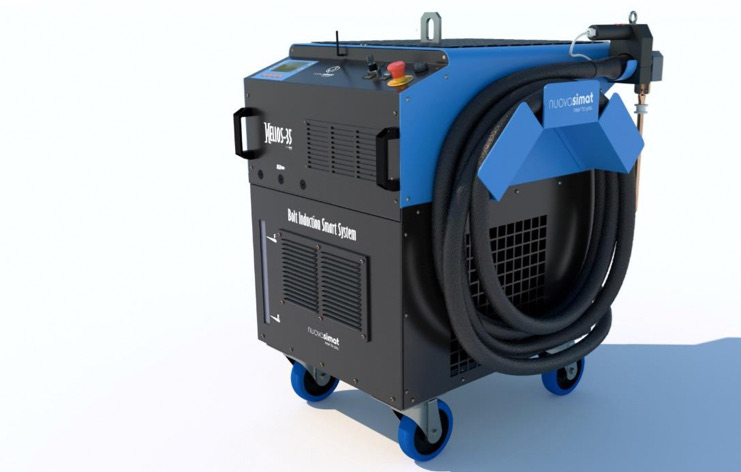

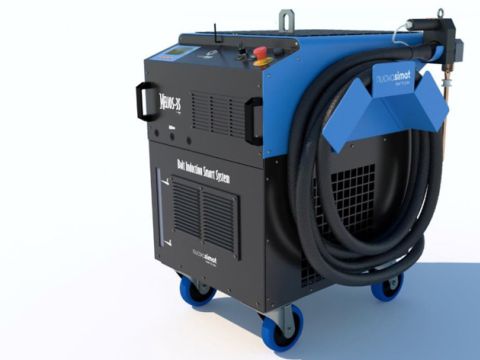

HELIOS 35 induction bolt heating

With the Nuova Simat HELIOS 35 you heat hollow bolts by means of magnetic induction. The inductor goes into the bore of the bolt and generates a magnetic field there; the bolt expands, and you simply loosen or tighten the nut. Think of steam turbine casings, valves and compressors. Much faster and safer than traditional heating rods ('candles') or a flame.

How it works

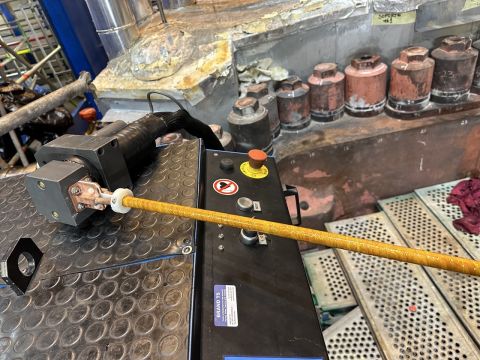

  1. The inductor goes into the hollow bolt and generates a magnetic field.
  2. Magnetic induction makes the bolt expand.
  3. You simply loosen the nut.

The inductors are made to measure, so they fit your bolts exactly. With the optional ring inductors you also heat nuts and other cylindrical parts, for example to free seized nuts.

We sell and rent out the HELIOS 35, from the Netherlands, wherever you need it. To make an enquiry, fill in the checklist (see Documentation); then we can determine the right inductors for you.

Features

Fast

According to Nuova Simat, induction shortens process time by up to 80% compared with outdated methods.

Safe for the operator

Thanks to internal cooling, the inductors stay cool.

Thread is spared

The magnetic field heats the core of the bolt; the thread does not overheat.

No external water supply

All-in-one, with a built-in cooling system and water level indicator.

Easy to operate

4.3″ colour display with clear menu and guided start-up procedure.

Power control per inductor

Shorter heating time and optimum efficiency, matched to the size and shape of the inductor.

USB and remote diagnostics

Configurations and operating data via USB; with Wi-Fi and modem the machine communicates remotely, for predictive maintenance.

Smart protection

Fault detection with automatic shut-down on an alarm.

Mobile

On wheels, with a heavy-duty lifting hook.

Applications

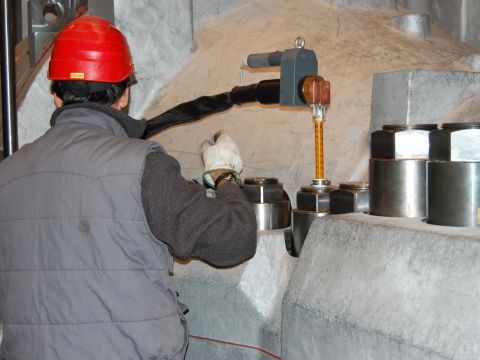

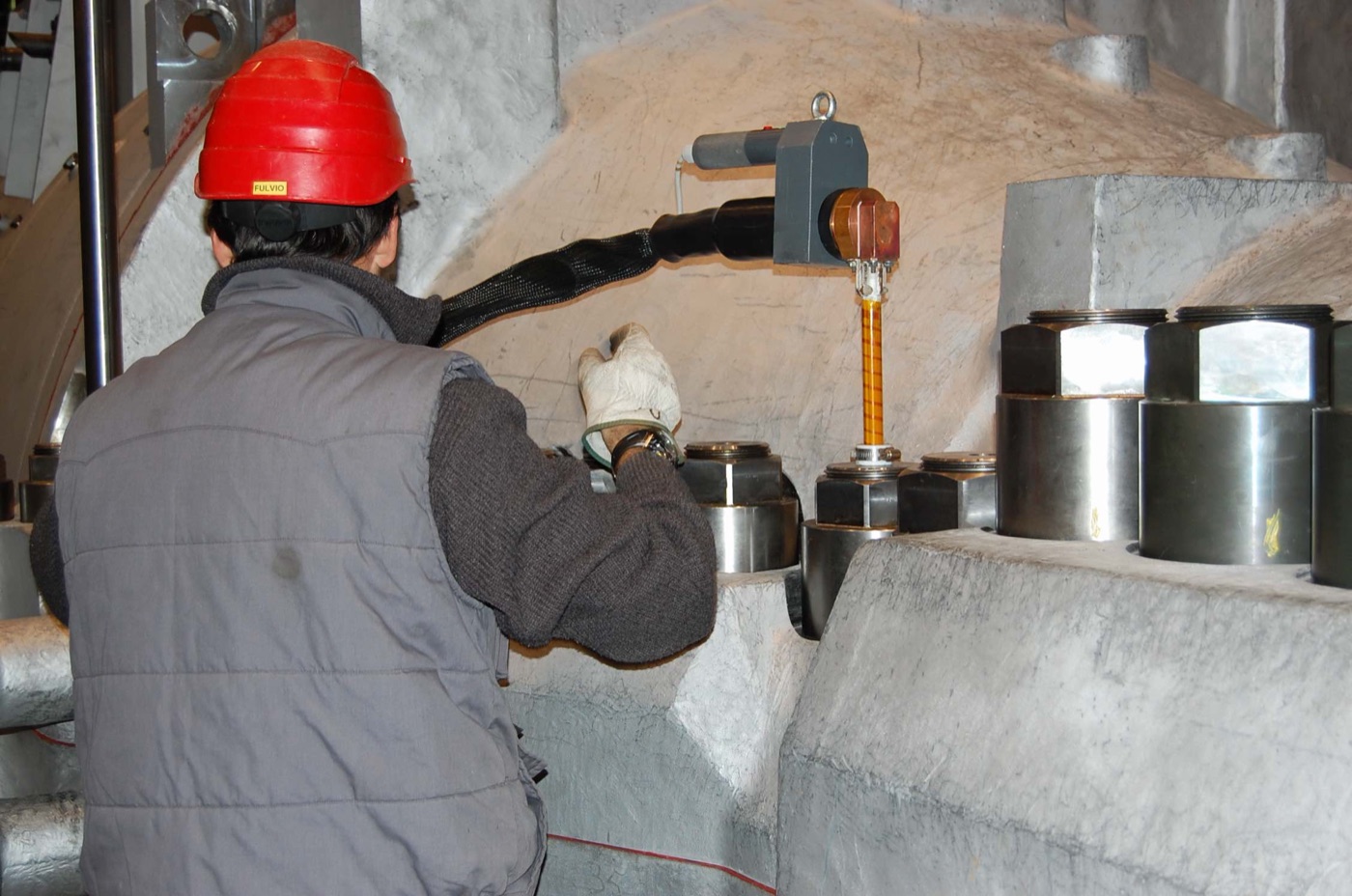

Turbine and valve bolts

Loosening and tightening hollow bolts of steam turbine casings, valves and compressors.

Tie rods

Also for tie rods and other hollow fasteners.

Seized nuts

With ring inductors you heat nuts and cylindrical parts.

Technical data

  • Power
    25 kVA
    Electrical
  • Frequency range
    5 – 35 kHz
    Electrical
  • Power supply
    400 V AC, 3-phase, 50 Hz (60 Hz)
    Electrical
  • Plug
    32 A 3P+E
    Electrical
  • Available power on site
    more than 25 kW (otherwise a generator)
    Electrical
  • Dimensions
    1,000 × 830 × 1,000 mm (w × d × h)
    Dimensions and weight
  • Weight
    205 kg
    Dimensions and weight
  • Cooling
    Internal, no external water supply needed
    Construction
  • Operation
    4.3″ colour display, USB port, Wi-Fi and modem
    Construction
  • Inductors
    Custom made, for hollow bolts; ring inductors optional
    Construction
  • Predecessor
    KERA 30,1
    Construction

Accessories

HELIOS 35T: timer

Set the heating time.

HELIOS 35R: ring inductors

For heating cylindrical parts, such as seized nuts.

HELIOS 35TR: timer and ring inductors

All the capabilities of the HELIOS 35.

Connectivity

Remote communication via Wi-Fi and modem.
