Torque wrenches

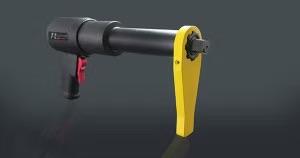

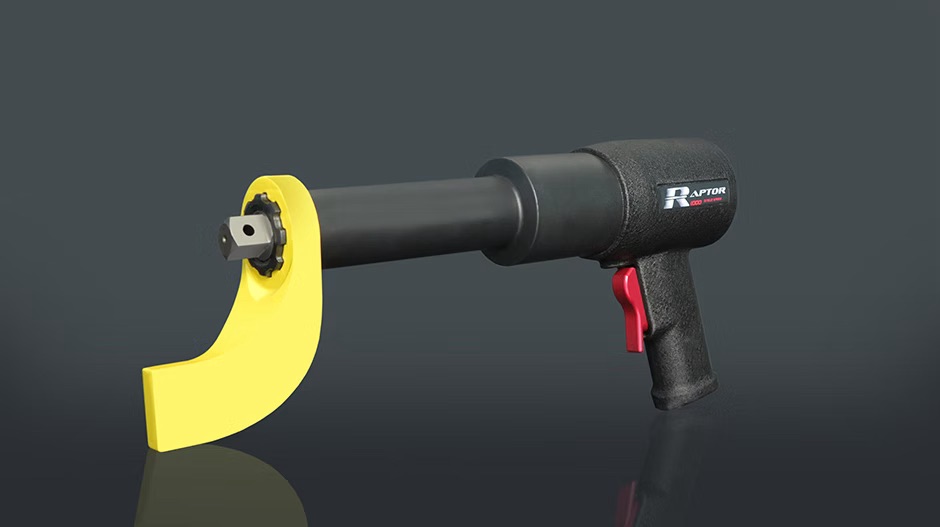

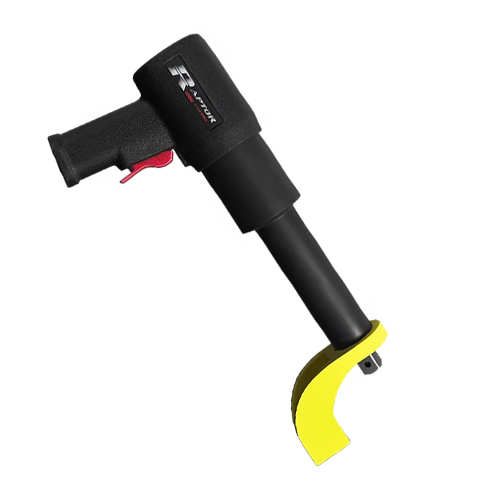

TorcUP Raptor RP-E6 pneumatic torque wrench

Raptor with extended nose: for wheel nuts and recessed bolts

Brand

TorcUP
Drive

Pneumatic
Torque range

201 – 1,396 Nm
Accuracy

± 5 %
Available for

Buy

The Raptor RP-E6 is a pneumatic torque wrench with an extended nose. It is made for one of the most critical bolted joints: wheel nuts. With standard impact sockets you achieve repeatable torque, with an accuracy of ±5%.

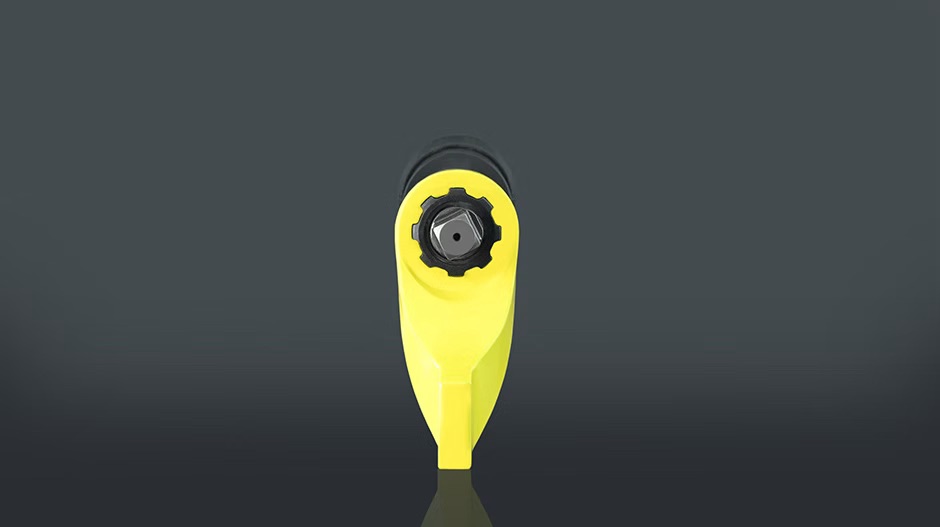

Extended nose

Based on the Raptor RP-1000, with built-in nose extension
The tool for wheel nuts
Impact socket and reaction arm also fit in tight spaces
Made in the USA
Every wrench calibrated in an ISO 17025 laboratory
Made of AQ-certified alloys

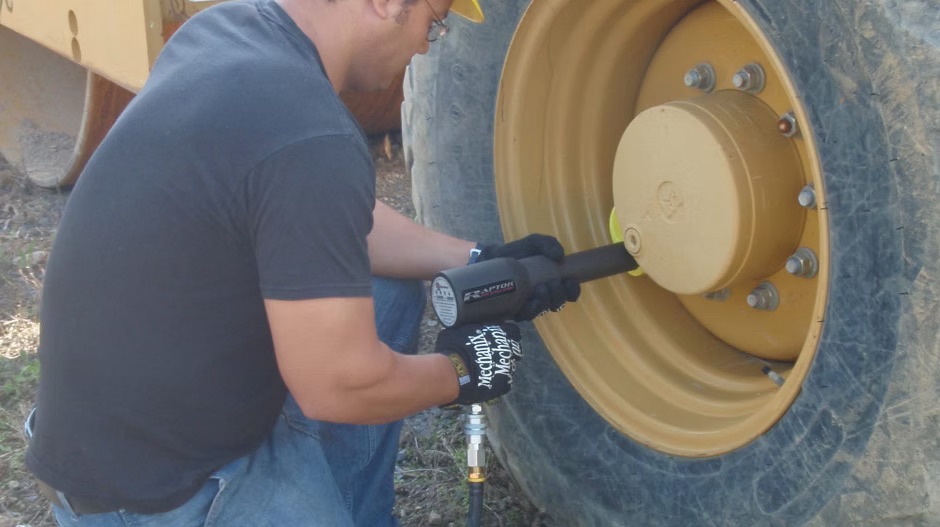

Thanks to the extended nose you can reach bolts that are recessed or in a narrow space. The typical application is fitting rims on large trucks and mining machines (OTR), but the RP-E6 is suitable for any recessed bolt up to 1,030 ft·lbs (approx. 1,400 Nm), for example on large pumps.

Features

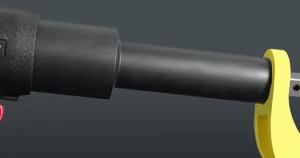

Built-in 15 cm nose extension

The nose is extended by 15 cm (6"), with a 3/4" square drive.

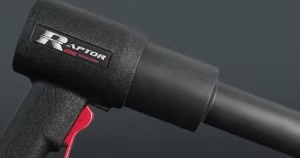

Ergonomic pistol grip

Firm and comfortable to hold, with a durable, non-slip coating.

Compact air motor

Light, highly efficient and easy to maintain.

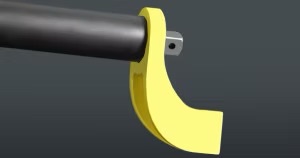

Cast reaction arm

One piece, without welds: a safe and strong reaction point.

Planetary gearbox

A patented planetary gear train multiplies the torque without extra weight or size.

Two-way trigger

Switch between tightening and loosening without moving your grip.

Specifications

Model

Min. torque (Nm)

Max. torque (Nm)

Power supply

Weight (kg)

In rental fleet

RP-1000E6

201

1396

3/4"

6.8

Full technical specifications

Specifications

Specification	RP-1000E6
Square drive	3/4"
Min. torque (lbf-ft)	148
Max. torque (lbf-ft)	1030
Min. torque (Nm)	201
Max. torque (Nm)	1396
Height A (inch)	7.89"
Height A (mm)	200.4
Length B (inch)	14.93"
Length B (mm)	379.2
Diameter C (inch)	1.86"
Diameter C (mm)	42.2
Weight (lbs) with reaction arm	15
Weight (kg) with reaction arm	6.8
Speed at 10 psi (rpm)	7
Speed at 70 psi (rpm)	15

Reference values only. Refer to the calibration torque chart supplied with the tool.

Specifications and dimensions RP-E6 SERIES

Accessories

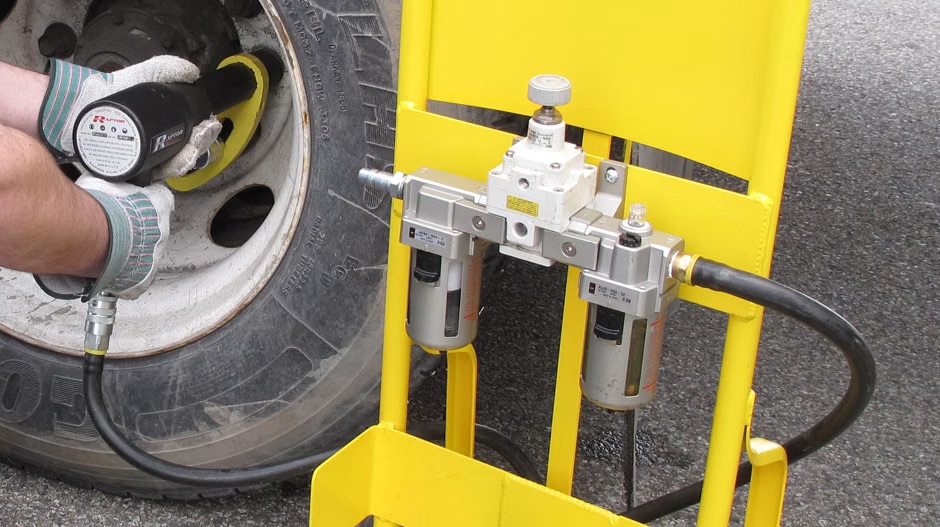

F/R/L unit (filter, regulator, lubricator)

Filters and lubricates the compressed air and regulates the pressure for the required torque. Complete with pressure gauge and 2.4 m air hose, in a welded steel frame for protection and transport.

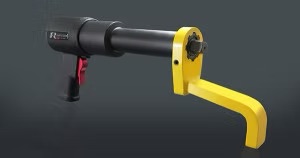

Long reaction arm

For extra reach, with long (deep-well) impact sockets.

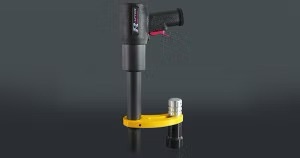

Socket-to-socket reaction arm

For reacting against the adjacent nut; the cap protects that nut. Adjustable to 4 – 6" (approx. 100 – 150 mm) from the square drive.

Straight reaction arm

For a reaction point at right angles (90°) to the drive.

Weld blank

Reaction arm of unmachined steel, to make your own custom arm. With spline for the Raptor RP and heat treatment specifications.
