Bearing heaters

SKF TIH 030m induction heater

Small induction heater for bearings up to 40 kg
  • Brand
    SKF
  • Heater type
    Bench model
  • Max. bearing weight
    up to 40 kg
  • Bore diameter
    20 – 300 mm
  • Power
    2 kVA
  • Power supply
    230 V
  • Heater weight
    21.2 kg
  • Available for
    Buy, Rent
Request a quote
Renting? View rates

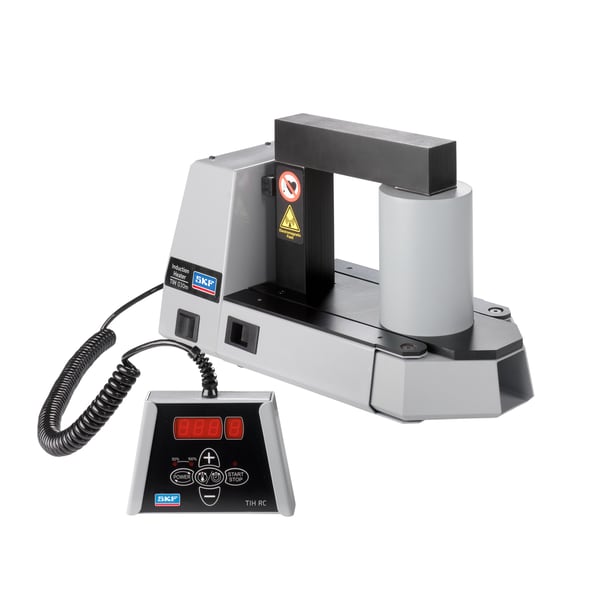

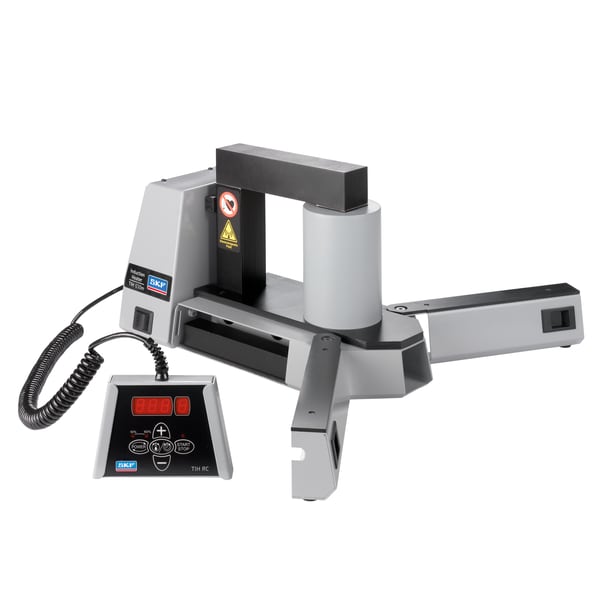

SKF TIH 030m induction heater

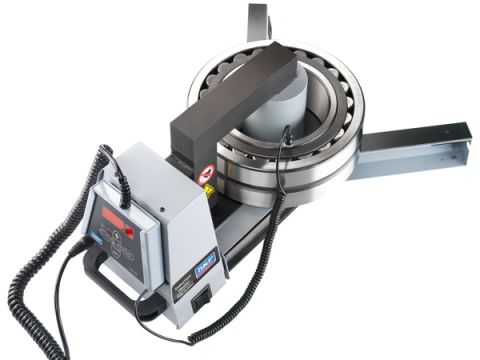

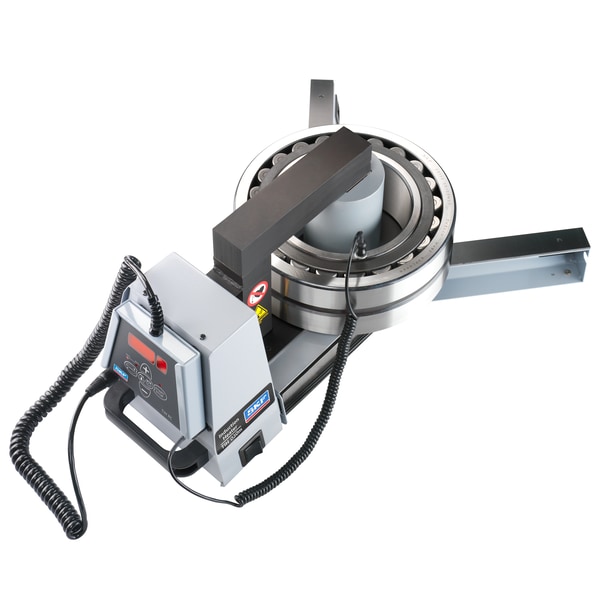

The SKF TIH 030m is a small induction heater for hot mounting of bearings. It is ideal for the workbench, but also easy to take along for work on site. The heater comes with three yokes and foldable support arms, and heats bearings with a bore from 20 mm and a weight of up to 40 kg.

  • Automatic temperature control or time-controlled heating
  • Automatic demagnetisation
  • Keep-warm function after the heating cycle
  • Also for solid workpieces up to 20 kg
  • Remote control with display

Features

Temperature or time mode

Heat to a set temperature, or for a set time.

Three yokes, stored internally

For bearings from 20 mm bore; the yokes are stored in the heater.

Automatic demagnetisation

After heating, the workpiece is automatically demagnetised. This reduces the risk of the bearing attracting metal particles and becoming contaminated.

Keep-warm function

Keeps the bearing at temperature after the heating cycle has finished.

Remote control

Operate the heater at a safe distance from the hot workpiece.

Also for other workpieces

Suitable for gears, bushings and other solid workpieces up to 20 kg.

Technical data

  • Type
    Bench model
    Application
  • Heating method
    Induction, low frequency
    Application
  • Max. bearing weight
    40 kg
    Application
  • Max. weight of solid workpiece
    20 kg
    Application
  • Workpiece bore diameter
    20 – 300 mm
    Application
  • Workpiece outside diameter
    32 – 500 mm
    Application
  • Max. workpiece width
    100 mm
    Application
  • Max. workpiece height
    135 mm
    Application
  • Voltage
    200–240 V
    Electrical
  • Max. current
    10 A
    Electrical
  • Frequency
    50/60 Hz
    Electrical
  • Max. power
    2 kVA
    Electrical
  • Temperature range
    20 – 250 °C
    Operation
  • Time control
    0 – 3,600 s
    Operation
  • Power settings
    50 %, 100 %
    Operation
  • Temperature measurement
    Magnetic probe type K
    Operation
  • Remote control (wired)
    Yes, with LED display
    Operation
  • Display
    LED display (7 segments)
    Operation
  • Automatic demagnetisation
    Yes
    Operation
  • Yoke
    Loose yokes
    Construction
  • Bearing support arms
    Yes, foldable
    Construction
  • Forced air cooling
    No
    Construction
  • Heater weight
    21.2 kg
    Construction
  • Supplied as standard
    Heater
    Remote control
    Temperature probe (TIH P20)
    3 standard yokes (TIH 030-Y7, TIH 030-Y4, TIH 030-Y2)
    1 pair of heat-resistant gloves (TMBA G11)
    1 tube of anti-fretting paste (LGAF 3E/0.035)
    1 Schuko mains plug
    Scope of delivery

Accessories

TIH 030-Y3

Extra yoke

TIH 030-Y6

Extra yoke

TIH 030-YS

Carrying yoke

TIH T1

Trolley for induction heaters

Rental

From € 45 excl. VAT
per day
Request rental
All rental rates
