Hydraulic pumps

TorcUP EMINI electric pump

Light, portable electric pump of 17.7 kg
  • Brand
    TorcUP
  • Drive
    Electric
  • Max. working pressure
    700 bar (10,000 psi)
  • Power supply
    230 V or 115 V
  • Motor
    0.6 kW (0.8 pk)
  • Oil flow
    5.1 / 0.5 l/min (2 stages)
  • Reservoir
    5.3 l
  • Weight
    17.7 kg
  • Available for
    Buy, Rent
Request a quote
Renting? View rates

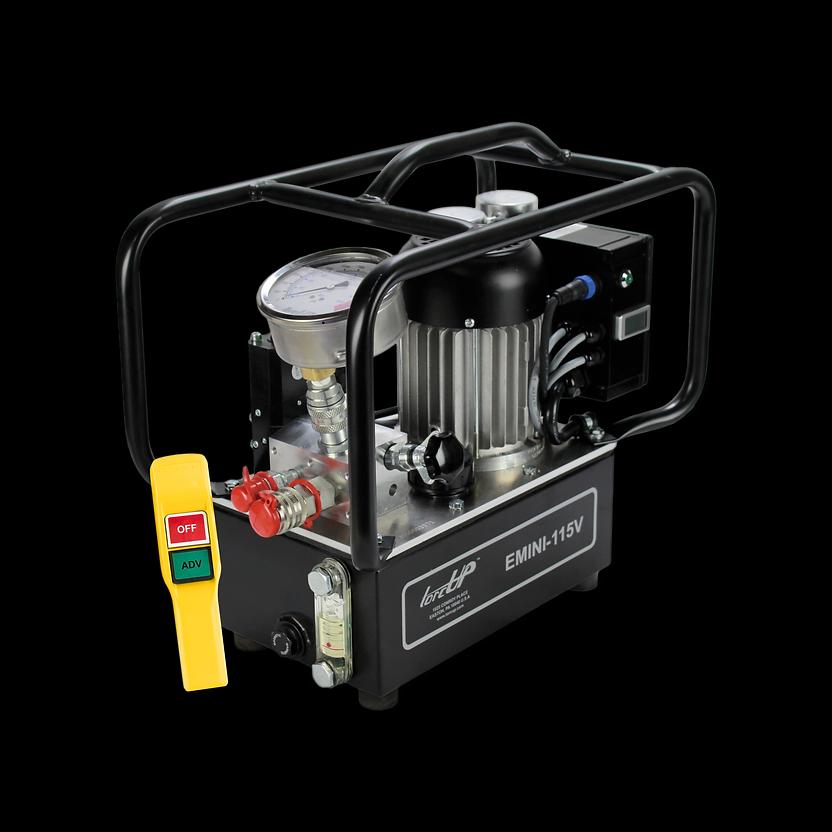

The EMINI is a light, portable electric pump for hydraulic torque wrenches. You take it to the job quickly and easily. The pressure is infinitely adjustable up to 700 bar (10,000 psi).

  • Two-stage pump of only 17.7 kg
  • Available in 115 V and 230 V
  • Hour meter for planning maintenance
  • Made in the USA

With the EMINI you can easily take your torque system to virtually any location, at height or underground. Even the lightest pump in the TorcUP range is built for durability.

Features

Heavy-duty electric motor

0.8 hp, for 50 and 60 Hz.

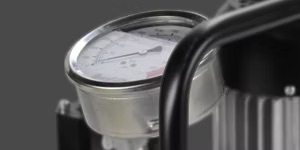

Accurate pressure gauge (psi and bar)

Large and easy to read, in psi and bar.

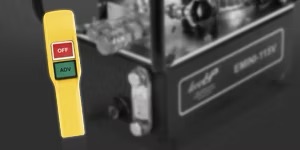

Rugged remote control

Full control at the push of a button.

Protective cage

Supplied as standard.

Industrial reservoir

Light and durable.

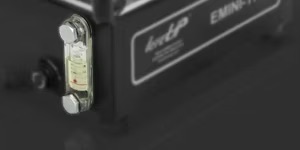

Sight glass

Oil level and oil temperature at a glance.

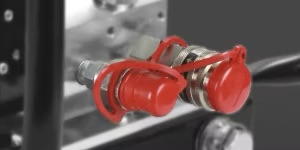

Drip-free quick couplers

Safety couplers with a 3:1 safety factor, easy to connect; the collar locks the coupler.

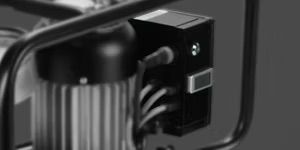

Electrical control box

Sealed, and easily accessible for maintenance.

Specifications

Full technical specifications

Technical data

EMINI-115V / EMINI-230V
Reservoir capacity 5.3 l (1.4 gal)
Valve Auto-retract
Motor 0.6 kW (0.8 hp), 115 V or 230 V
Weight 17.7 kg (39 lbs)

Oil flow

Max. oil flow
Stage 1 (70 bar / 1,000 psi) 5.1 l/min (310 cu.in/min)
Stage 2 (700 bar / 10,000 psi) 0.5 l/min (31 cu.in/min)

Dimensions

PumpReservoir
Length 432 mm (17.0 in) 297 mm (11.7 in)
Width 249 mm (9.8 in) 178 mm (7.0 in)
Height 373 mm (14.7 in) 117 mm (4.6 in)
Specifications and dimensions EMINI

Accessories

Quadra-Torc option

Factory-fitted with a four-port manifold, to operate four wrenches at once.

Twinline high-pressure hoses

From 4.5 to 15 m; longer hoses to order.
