Laser Pulley Alignment System

KX-3550 Pulley PRO® Green

Get more out of your belt driven equipment with proper belt alignment using PULLEY PRO GREEN belt alignment tool.

With Patented Reflected Laser Beam Technology

The Pulley Pro Green is a state of the art pulley alignment system that makes use of green laser technology.

One of the most efficient and reliable laser belt alignment tools available, the Pulley Pro Green is an extremely powerful device. It takes advantage of reflected beam technology, allowing for maximum angular resolution.

Regardless of the industry you work in, the Pulley Pro Green will give you accurate results every time you use it.Besides a brighter laser and enhanced optics, the design of this system reduces belt noise and can help save on your energy bills. This machine only requires one person to operate it, with no training necessary.

  • Features and Benefits

    • Green is 10x’s brighter than red
    • Reduces vibration and belt noise
    • Prolongs belt and pulley life
    • Reduces down time and energy costs
    • Fast and easy
    • Shows angular, parallel, and offset simultaneously
    • No training required
    • One-person operation
    • More accurate and efficient than any other tool or conventional method
    • Uses proven reflected laser beam technology
    • Used for shots up to 4.5m. / 15 ft. or better

  • Technical Data

    Type of laser
    		 Green laser diode
    Laser
    		 1x Built-in class 2 laser, <1 mW, 532 nm
    Laser line length
    		 711mm at 1,9 m (28" at 6 ft)
    Measurement accuracy angular
    		 Better than 0,02° at 2 m (6.6 ft)
    Measurement accuracy offset
    		 1,6 mm at 1.9 m (1/16" at 6 ft.)
    Measurement distance
    		 4 600 mm (15 ft)
    Control
    		 Laser on/off rocker switch
    Housing material
    		 Aluminum, powder coat finish
    Dimensions

    Transmitter unit
    		 23 x 32 x 165 mm (1.25 x 1.25 x 6.5 in.)
    Receiver unit
    		 23 x 19 x 165 mm (1.25 x 0.75 x 6.5 in.)
    Reflector dimensions
    		 25 x 36 mm (1.0 x 1.4 in.)
    Weight

    Transmitter unit
    		 286.3 g (10.1 oz.)
    Receiver unit
    		 175.8 g (6.2 oz.)
    Mounting
    		 Magnetic, side mounted
    V-guides
    		 N/A
    Battery
    		 2x AAA Alkaline type IEC LR03
    Operation time
    		 8 hours continuous operation
    Carrying case dimensions
    		 260 x 203 x 76 mm (10.25 x 8 x 3 in.)
    Total weight (incl. case)
    		 0,9 kg (1.9 lbs)
    Operating temperature
    		 9 to 43 °C (15 to 110 °F)
    Storage temperature
    		 –20 to +60 °C (–4 to +140 °F)
    Relative humidity
    		 10 to 90% RH non-condensing
    IP rating
    		 IP 40
    Calibration certificate
    		 Valid for two years
    Case contents
    		 1x KX-3500T transmitter unit 1x KX-3500R receiver unit 2x AAA batteries 1x Printed instructions for use 1x Calibration certificate

  • Accessories

    KX-1050set      Offset Bracket Kit for Pulley Partner® series and Pulley Pro®

    Offset Bracket Kit is used with pulleys or sprockets when a large offset is required. The kit includes a 1/2" and a 3/4" offset brackets.

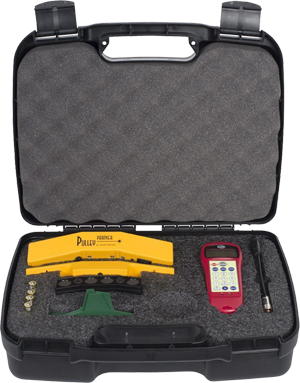

    Combine both offset brackets for a 1 1/4" offset. Or a compleet set with Sonic Belt Tensioning Meter.

     Pulley_acces2

    Standard Bracket
    1/2" Offset Bracket
    3/4" Offset Bracket

  • Video

  • Documents / Downloads

    Brochure Pulley Alignment Tools KX-3550
