SV SERIES Hydraulic Torque Wrench Pump

The Most Synchronous Hydraulic Torque Wrench Pump In The Industry
The SV series hydraulic torque wrench pump is the perfect synthesis of continuous ratcheting and power to torque. Full range adjustability up to 10,000 PSI / 700 Bar.
“SPEED” Mode For Quick Fastener Rundown
- Made in the USA
- Standard Multi-Port
- Available in 115V and 230V
- Supplied With 15′ (3 Meter) Hydraulic Hose
- Genuine TorcUP Design
What makes the SV Series “SUPER”? It is the built-in circuitry that allows the operator to designate the specific tool being used. The pump will then autocycle in “SPEED” mode for quick fastener rundown. Once the nut is seated, activate the torque button to take the job to its final required setting. If speed is your focus, then the SV Series is the answer.
-
Specifications
Model # Reservoir Capacity Valve Model Valve Style / Function Pendant Motor Spec Flow Rate Weight SV1000 Torque Auto Retract / Advance/Retract Motor / Solenoid Control 1.5 HP @115VAC Single Phase 700 cu.in./min. @ 1,100 psi
55 cu.in./min.@10,000 psi (9.4 litres / min. @ 75 bar 0.9 / min. @ 700bar)65.75 lbs /
29.8 kgSV1000-230V 1.5 gal /
5.7 litreTorque Auto Retract / Advance/Retract Motor / Solenoid Control 1.5 HP @230VAC Single Phase 701 cu.in./min. @ 1,100 psi
55 cu.in./min.@10,000 psi (9.4 litres / min. @ 75 bar 0.9 / min. @ 700bar)65.75 lbs /
29.8 kg -

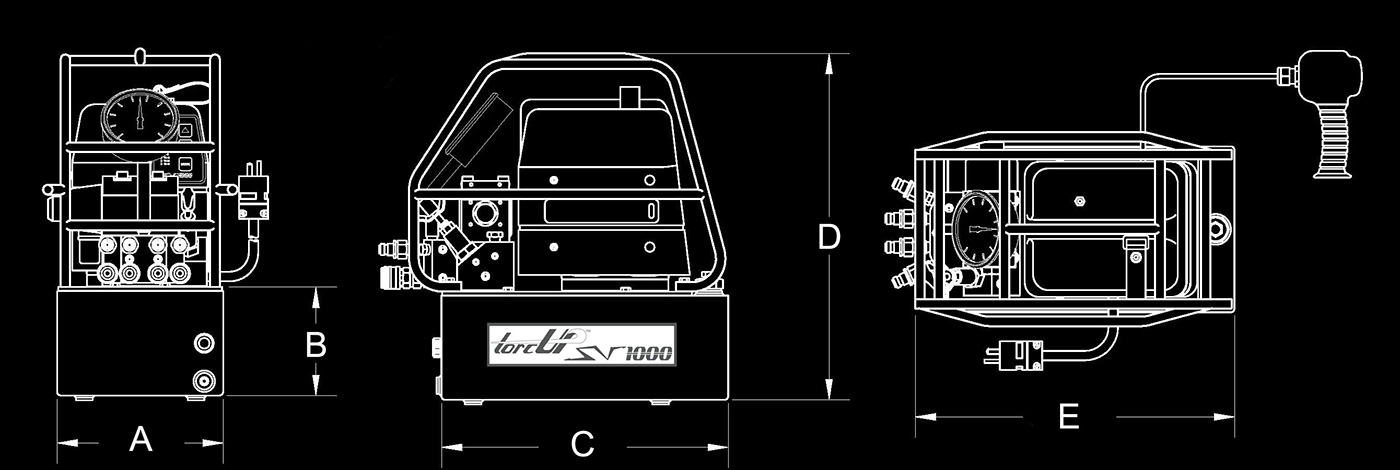

Dimensions
Usable Reservoir Capacity A B C D E 1.5 gal. /
5.7 litre8.75 in /
222 mm5.96 in /
151 mm15.13 in /
384 mm18.1 in /
460 mm16.85 in /
428 mm -
Features
Tool Selection Display
Industrial grade LED membrane switch enables quick selection of tool for auto cycle operation.
Powerful 1.5 HP Motor
The permanent magnet motor driving the SV1000 Series runs at 1/3 of the RPM found in other hydraulic pumps. Field-proven gears run cooler and last longer to provide years of trouble free service
Precise PSI/Bar Gauge
Removable, easy-to-read 4" PSI/Bar gauge for ease of tool torque adjustment and monitoring.
Rugged Remote
Each pump includes the 15' low-voltage ergonomic remote operation pendant. The durable design is suited for the harshest environments.
Built-In Protective Shroud and Roll Cage
The motor and electronics are enclosed in a safety shroud to protect the pump from the elements and other environmental contaminants. For added safety, the pump is also fitted with a sturdy roll cage for lifting and protection.
Industrial Reservoir
Powder coated aluminum reservoir is lightweight yet durable for operating in the harshest environments. The pump comes standard with a 1.5 gallon reservoir.
Easy View Sight Glass
Sight glass enables operator to monitor reservoir oil levels.
Pressure Adjustment Knob
The easily accessible knob allows the user to adjust the pressure output of the pump, increasing or decreasing torque when necessary.
Twinline High Pressure Hydraulic Hoses
Each pump comes standard with one set of 15' twinline hydraulic hoses. The hoses are 4:1 safety rated and made of durable steel mesh in a protective rubberized coating.
No Drip Quick Connect Couplers
These 3:1 rated safety couplers are designed for simple engagement. The coupler collar ensures safe operation. This model is configured for the quadra-torc option - running up to four tools simultaneously. -
Accessories
Tool Selection Display
Industrial grade LED membrane switch enables quick selection of tool for auto cycle operation.
Powerful 1.5 HP Motor
The permanent magnet motor driving the SV1000 Series runs at 1/3 of the RPM found in other hydraulic pumps. Field-proven gears run cooler and last longer to provide years of trouble free service
Precise PSI/Bar Gauge
Removable, easy-to-read 4" PSI/Bar gauge for ease of tool torque adjustment and monitoring.
Rugged Remote
Each pump includes the 15' low-voltage ergonomic remote operation pendant. The durable design is suited for the harshest environments.
Built-In Protective Shroud and Roll Cage
The motor and electronics are enclosed in a safety shroud to protect the pump from the elements and other environmental contaminants. For added safety, the pump is also fitted with a sturdy roll cage for lifting and protection.
Industrial Reservoir
Powder coated aluminum reservoir is lightweight yet durable for operating in the harshest environments. The pump comes standard with a 1.5 gallon reservoir.
Easy View Sight Glass
Sight glass enables operator to monitor reservoir oil levels.
Pressure Adjustment Knob
The easily accessible knob allows the user to adjust the pressure output of the pump, increasing or decreasing torque when necessary.
Twinline High Pressure Hydraulic Hoses
Each pump comes standard with one set of 15' twinline hydraulic hoses. The hoses are 4:1 safety rated and made of durable steel mesh in a protective rubberized coating.
No Drip Quick Connect Couplers
These 3:1 rated safety couplers are designed for simple engagement. The coupler collar ensures safe operation. This model is configured for the quadra-torc option - running up to four tools simultaneously. -
